DP-RC-8DA Intelligent Drug Tablet Dissolution Tester 25-250 Rpm Speed ​​range

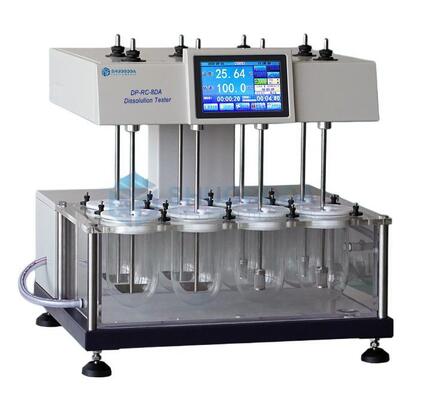

DP-RC-8DA Drug tablet dissolution tester

Instrument structure and features:

Ø DP-RC-8DA adopts industrial grade high resolution color touch screen, 32bit 400MHz MCU, easy to operate, precise control, friendly interface and human interface. Users can enjoy intelligent operation according to the screen prompts.

Ø DP-RC-8DA dissolution apparatus adopts high head structure design form, and the space between the lower edge of the machine head and the water tank is larger than that of the conventional model. Conducive to drug administration, sampling or rehydration operations, and easy access to the dissolution cup.

Ø DP-RC-8DA provides user management permission function, setting two program entries of administrator account and general account. Enter the general account and perform routine repetitive testing operations. Log in to the administrator account to enter the system through password identification, and perform various parameter settings and actual operations.

Ø Dissolution cup and water tank have no gap design to ensure automatic center positioning. Eliminate system errors.

Ø The instrument provides “basic test” and “program test” options. The basic test function can change the test parameters at any time as needed to facilitate research tests. The program test function can perform 16 sets of preset test procedures, which is convenient for routine repeatability tests.

Ø The instrument provides intelligent temperature correction function, which allows users to perform temperature calibration and calibration through interactive operation easily, simply and reliably.

Ø The operation monitoring interface of the instrument provides users with 7 real-time data display windows; real-time temperature display, real-time display of speed, cumulative timing display, current waiting sampling times, current “n” sampling time, waiting for the current “n” The remaining time of the sub-sampling (countdown), the current "year, month, day", and "hour, minute, and second" are displayed.

Ø The instrument provides USB real-time information download and massive test data storage. Completely save all data for the test process. Support for audit trails. The instrument also provides a standard 232 output interface for an external printer. Print real-time test data such as time, temperature and speed during the test.

Ø The instrument provides two kinds of operation interface in Chinese and English, one button to switch.

Ø The instrument provides timed shutdown and timed automatic warm-up function.

Ø The instrument provides the function of electronic message board. The user can make a message or data backup of the handover message through the Chinese character input interface of the touch screen.

Ø The instrument provides Chinese characters, numbers and English editing functions. It can be used for USB storage or printout, and provides data such as test number, test name, test parameters, and test methods.

Ø With self-test and automatic protection function, it can give a variety of fault alarm prompts and secondary overheat protection.

Ø DP-RC-8DA built-in head electric lifting structure form, not only beautiful in appearance, but also can avoid the rust and corrosion of the lifting machine exposed to the air, and reduce the motion noise.

Ø Dissolution cup lid that prevents evaporation of the dissolution medium.

Ø The instrument complies with the 2015 edition of the Chinese Pharmacopoeia

Ø The instrument complies with the "Guidelines for Mechanical Validation of Drug Dissolution Apparatus"

Ø Provide 3Q documents and 3Q verification services and physical properties verification (mechanical verification) services of the dissolution apparatus according to user requirements.

Applicable standards:

Chinese Pharmacopoeia 2015 Edition

Current regulations of China GMP

 Main Specifications:

1. Level: inclination ≤0.5° (measured in two vertical directions after installation)

2. Basket paddle (axis) verticality: ≤0.5° off vertical

3. Dissolution cup verticality: ≤1° deviation from the vertical direction

4. Coaxiality of the vessel and the basket (paddle) axis: off-axis ≤1.0mm

5. Basket (paddle) shaft swing: swing ≤ 0.3mm

6. Basket swing: swing ≤0.5mm

7. Depth of basket (paddle): 25±1mm

8. Basket (paddle) shaft speed error: <±4%

9. Medium temperature in each vessel: 37°C ± 0.3°C

10. Vibration: ≤0.1mil

11. Speed ​​range: 25-250 rpm

12. Speed ​​accuracy resolution: 0.1 rpm

13. Water bath temperature range: 5°C (room temperature) -50°C

14. Temperature display resolution: 0.01°C

15. Temperature control accuracy: ≤±0.3°C

16. Cumulative time: 99 hours, 59 minutes and 59 seconds. (Basic experiment timing)

17. Program-controlled sampling times: 1-24 different sampling periods can be preset.

18. Sampling cycle time: arbitrarily set for 99 hours and 59 minutes per cycle, 24 sampling cycles can be counted down in stages, or continuous countdown.

19. USB data download, print interval setting: ≤ 1-60 minutes

20. Continuous working time: 100h

21. 8 185mm high-dissolution cups can be placed, or they can be placed in the shading-dissolving cup.

22. The machine head is electrically lifted. With a new built-in protective lifting structure.

23. Working noise: <60db

24. Working environment: 5-35°C relative humidity; ≤80%

25. Electric heating power: 1300~1500W
