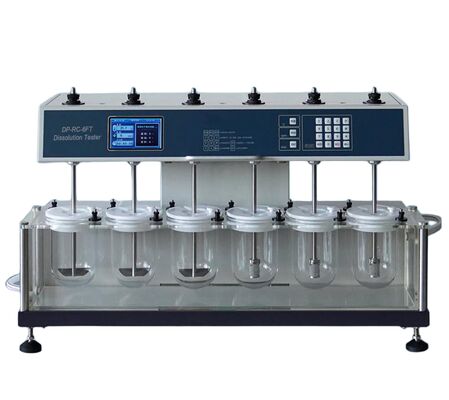

DP-RC-6FT 6 Pulp 6 Cups Tablet Drug Dissolution Tester 1200W

DP-RC-6FT Drug Tablet Dissolution Tester

Instrument structure and features:

Ø The water tank is arranged in a single row. It can be installed with 6 baskets or pulp poles and can be installed with 6 vessels.

Ø Dissolution cup and water tank have no gap design to ensure automatic center positioning. Eliminate system errors.

Ø Electronic temperature sensor can display and monitor the temperature of each point water bath.

Ø The time system consisting of a new architecture ensures smooth and accurate timing of the instrument.

Ø The human-machine interface is friendly. The instrument adopts a large-screen color LCD screen. Users can enjoy intelligent menu-style operation according to the screen prompts. Each operation process gives Chinese character prompts and quantitative indicators.

Ø With self-test function and automatic protection function, it can give a variety of fault alarm signals.

Ø The installation position of the water bath can be adjusted and locked, and the vertical axis of the pulp bar, the rotating basket and the dissolution cup is automatically centered.

Ø The pulp rod, basket and basket made of high quality imported 316L stainless steel material meet the requirements of Chinese Pharmacopoeia.

Ø The instrument provides “program control test” function to execute 12 sets of preset sampling program combinations, suitable for routine repeatability test.

Ø The instrument provides “basic test” function to change the test parameters at any time during the test, which is convenient for research tests.

Ø The instrument provides “automatic warm-up” function to start preheating bath at unattended time, saving manpower and time.

Applicable standards:

★ Food and Drug Administration, “Guidelines for Mechanical Validation of Drug Dissolution Apparatus”.

★ "Pharmacopoeia of the People's Republic of China" 2015 edition.

★ Industry standard "Drug dissolution tester" JB/T20076-2005.

Main Specifications:

1. Level: inclination ≤0.5° (measured in two vertical directions after installation)

2. Basket paddle (axis) verticality: ≤0.5° off vertical

3. Dissolution cup verticality: ≤1° deviation from the vertical direction

4. Coaxiality between the vessel and the basket (paddle) axis: Offset axis ≤1.0mm

5. Basket (paddle) shaft swing: swing ≤ 0.3mm

6. Basket swing: swing ≤0.5mm

7. Depth of basket (paddle): 25±2mm

8. Basket (paddle) shaft speed: ±4%mm

9. Medium temperature in each vessel: 37°C ± 0.3°C

10. Vibration: ≤0.1mi1

11. Speed range: 25-250 rpm

12. Speed resolution: 1 rev / min

13. Water bath temperature range: room temperature -45°C

14. Temperature resolution: 0.1°C

15. Temperature control accuracy: ≤ ± 0.3°C

16. Number of sampling cycles: 1-12 different sampling periods can be preset.

17. Sampling cycle time: 1-99 hours per cycle optional, 12 sampling cycles can be counted down in stages, or continuous countdown.

18. Large screen Color LCD display, intelligent menu operation.

19. A removable electronic temperature sensor monitors the temperature at each point of the water bath.

20. Standard: 6 pulp 6 cups

21. Power maximum power: 1200W

22. With self-test and automatic protection, it can give a variety of fault alarm prompts and secondary overheat protection.

23. Dimensions: length * width * height 910mm * 400mm * 510mm

The following is a brief introduction to a set of control interfaces:
