8 / 12 Channels Dissolution Automatic Sampling System Dissolution Sampler

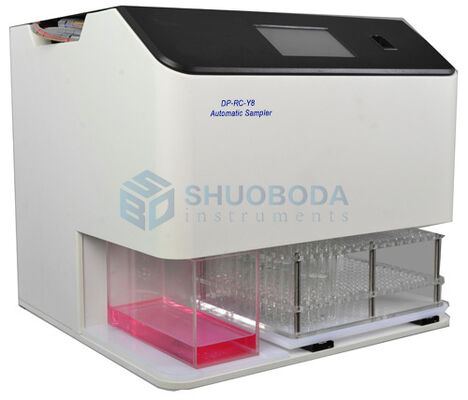

DP-RC-Y8 /Y12 Dissolution Automatic Sampling System

DP-RC-Y8 (8 channels)/Y12 (12 channels) dissolution automatic samplers are equipped with 812 pipeline interfaces and are fully compatible with dissolution apparatus from most manufacturers. WiFi, RS232, RS485, LAN, and Bluetooth data interfaces can be upgraded. The entire system uses a 26ml high-precision syringe as the sampling power. The sampling speed is fast and the accuracy is high. The whole system has primary filtrate and distribution functions, which can realize the waste of primary filtrate and the distribution and retention of continued filtrate. And samples can be collected directly into ampoules. An 8/12-channel precision syringe pump is used to achieve high-precision automatic filtration, sampling and rehydration. It has advanced structure, accurate control and high degree of intelligence.

Performance features:

Ø Fully corrosion-resistant and high-pressure resistant pipelines.

Ø The syringe pump uses grinding-grade ball screw + three-phase stepper motor.

Ø Permission management, supports level 3 and 7 users.

Ø Audit trail functionality.

Ø Support fingerprint login.

Ø Support online printing.

Ø The tubes come with silicone caps.

Ø Synchronous filtering can be achieved.

Ø Can be collected into ampoules.

Ø Compatible with dissolution apparatus from most manufacturers.

Ø 3Q verification is available.

Ø Full 24V DC power supply system.

Technical Parameters:

1. Syringe specifications: 26ml, 1% accuracy.

2. Sampling accuracy: RSD±1%@10ml.

3. Sampling channel: 8/12.

4. Sampling interval: minimum 1 minute.

5. Sampling times: 16 times.

6. Single sampling volume: 1ml~100ml.

7. Test tube collection volume: 15ml.

8. Distribution function: Yes.

9. Fluid replenishment function: equal volume of fluid replenishment.

10. Sampling mode: precision, speed.

11. Initial filtration volume: 0ml~10ml.

12. Primary filtration: 10μm cylindrical filter head.

13. Secondary filter: φ25mm syringe filter, pore size material is optional.

14. Permission management: three levels, seven users.

15. Audit trail: 128 entries × 366 days.

16. Login method: username + password, fingerprint.

17. Online printing: supported.
