DP-RC-12MD Drug Dissolution Tester 12 Cups Corrosion Resistance

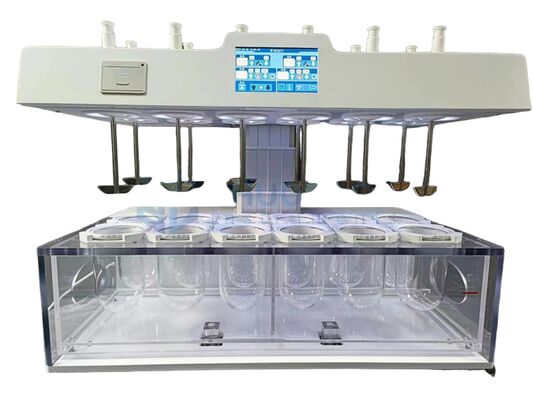

DP-RC-12MD Drug Dissolution Tester

The DP-RC-12MD dissolution tester is a high-performance 12-cup and 12-bar dissolution test device designed and manufactured strictly in accordance with the regulations of the Chinese Pharmacopoeia and the United States Pharmacopoeia. It has high intelligence, advanced structure, accurate control, and reliability. good. The integrated design of the PC cup plate and the water bath box has a beautiful appearance and is convenient for observing the test process from multiple angles. High temperature resistance, corrosion resistance, extended service life.

Technical Parameters:

1. Number of devices: 12 cups and 12 rods. (An isothermal rehydration cup can be added)

2. Speed zone: (6+6) 2 working areas, 2 batches of dissolution tests can be completed at the same time

3. Applicable methods: Method 1 (basket method), method 2 (paddle method), method 3 (small cup method), method 4 (paddle-disk method), and method 5 (rotating drum method) of the Chinese Pharmacopoeia.

4. Stirring speed: 25RPM-250RPM. (The stirring speed can be adjusted to 300RPM)

5. Stirring direction: clockwise, counterclockwise.

6. Stirring paddle swing range: ≤0.3mm

7. Stirring speed resolution: 0.01RPM.

8. Speed error: ≤0.5%.

9. Basket swing range: ≤0.5mm

10. Deviation of rotating rod and dissolution vessel axis: ≤0.5mm

11. Water bath temperature: room temperature -45.00℃. (The heating temperature can be selected to 55℃)

12. Temperature resolution: 0.01℃.

13. Water bath temperature control accuracy: 0.2℃.

14. Dissolution medium temperature control accuracy: 0.2°C.

15. Dosing mode: automatic and synchronous dosing.

16. Lifting system: Bamboo square column lifting.

17. Permission management: three levels, seven users.

18. Audit trail: 128 × 366 days.

19. Working noise: <60db

20. Environmental conditions: ambient temperature 5-37℃, relative humidity ≤80%

21. Safety performance: in line with national industry standards, with self-check and automatic protection functions

22. Power supply: 220V, 50Hz

Additional equipment and optional items need to be purchased separately.
