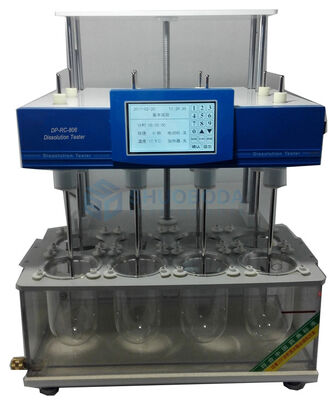

DP-RC-806 Laboratory Drug Dissolution Tester Equipment

DP-RC-806 Drug Dissolution Tester

The DP-RC-806 dissolution tester is a new type of drug dissolution tester developed using advanced technology and components based on years of successful experience in producing dissolution testers in accordance with the requirements of the Chinese Pharmacopoeia and the United States Pharmacopoeia. The instrument adopts double rows of 8 cups and 8 rods, with an electric lifting structure for the machine head. The LCD screen displays menu operations and preset program control.

Main features:

Ø The machine head is electrically lifted and lowered, using linear bearings, with good movement repeatability and high degree of automation.

Ø The dissolution vessel lid is fully sealed, which can effectively prevent the evaporation of the dissolution medium

Ø The rotary rod and dissolution vessel are automatically centered, eliminating the need for manual adjustment.

Ø Adopts new touch LCD screen, menu-based operation, friendly human-machine interface, and easier to use

Ø The constant temperature water bath uses a built-in integrated temperature sensor, and software is used to correct the temperature deviation.

Ø Programmable test function, 10 sets of preset programs can be set and executed, suitable for routine repetitive tests

Ø Basic test functions allow you to change operating parameters at any time to facilitate research tests.

Ø The user-preset programs and test parameters are automatically stored in the device, and there is no need to repeat the settings next time it is turned on.

Ø The "scheduled shutdown" function can automatically terminate the dissolution test when unattended.

Ø The "automatic preheating" function can start preheating the water bath at regular intervals without being attended, saving manpower and time.

Ø The instrument has an ultra-high temperature alarm (>47℃) and automatically cuts off heating.

Ø The paddle shaft, blue pole and basket body are made of high-quality 316 stainless steel, and the quality and performance meet the requirements of the new "Chinese Pharmacopoeia".

Ø Use SD card to store data, which can be transferred to computer for backup

Ø With user rights management function

Technical Parameters:

1. Number of rotating lever positions: 8

2. Number of dissolution cups: 8

3. Paddle shaft swing amplitude ≤±0.5mm

4. The swing range of the basket is ≤±1mm

5. The coaxiality between the rotating rod and the dissolution vessel is ≤2mm

6. Speed adjustment range: 25~250 rpm

7. Speed resolution: 1 rpm

8. Stable speed error ≤±4%

9. Temperature adjustment range: 5.0 (room temperature) ~ 45.0℃

10. Temperature resolution: 0.1℃

11. Temperature measurement and control error ≤±0.3℃

12. Program-controlled sampling times: ≤ 12 times (each group). The instrument can set 10 groups of program-controlled sampling parameters, and each group can set 12 sampling points.

13. Programmable single sampling cycle: ≤24 hours and 59 minutes

14. The instrument configuration storage SD card has the functions of storing, transferring and printing test data through a computer printer.

15. Continuous working time: 48 hours
