Auto Drug Dissolution Test With Electric Lifting Machine Head Function

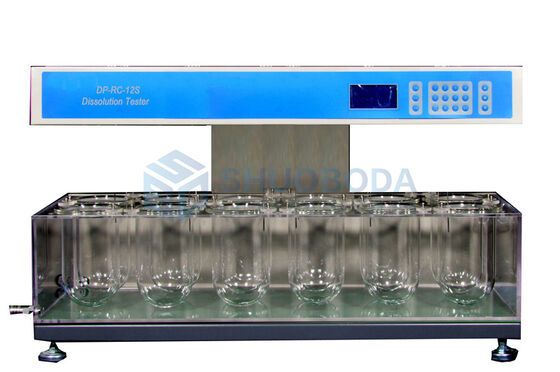

DP-RC-12S Drug Dissolution Tester

With 6 cups in front, 6 cups after behind

DP-RC-12S drug dissolution tester is a model with electric lifting machine head function. To replace the pulp rod or basket rod, you only need to operate the keyboard, and the machine head will automatically rise, making the pulp changing operation more convenient and handier.

Main features:

Ø Can install 12 basket poles or paddle poles.

Ø Can install 12 new dissolution vessels with a height of 185mm.

Ø Friendly human-machine interface, simple and convenient operation.

Ø All working parameters can be preset and automatically stored, so there is no need to repeat settings next time the machine is turned on.

Ø Accurate speed, smooth operation and low energy consumption.

Ø The constant-temperature water bath adopts a built-in integrated temperature sensor and new software and hardware temperature measurement and control methods. It heats up quickly and has high accuracy. The temperature deviation can be easily corrected with software.

Ø The test timing can be started, paused and reset independently.

Ø Has automatic protection functions such as self-check fault alarm and overheating protection.

Ø The pulp rod, basket rod and rotating basket body are made of high-quality stainless steel materials, and their quality and performance meet the requirements of the Chinese Pharmacopoeia.

Main technical specification:

1. Stirring paddle swing range: ≤0.3mm

2. Swing range of basket: ≤0.8mm

3. Deviation of rotary rod and dissolution vessel axis: ≤1mm

4. Speed adjustment range: 20-200 rpm

5. Speed resolution: 1 rpm

6. Water bath temperature adjustment range: room temperature -45ºC

7. Temperature resolution: 0.1ºC

8. Temperature control accuracy: ≤±0.3ºC

9. Number of sampling cycles: 9 different sampling cycles can be preset.

10. Sampling cycle time: You can choose from 1 to 999 minutes per cycle, and the 9 sampling cycles can be counted down in stages.

11. Timing error: ±0.5min

12. Pharmacopoeia parameter calling: 300 dissolution test parameters of the "Chinese Pharmacopoeia" are stored in the machine and can be called randomly.

13. Large-screen LCD display and intelligent menu-based operation.

14. The machine head can be raised and lowered automatically and comes with a flip function (a model that is particularly convenient to operate).

15. Electronic sensors can monitor the temperature of various points in the water bath.

16. Standard configuration: 12 pulps and 12 cups

17. Electric heating power: 1100W
