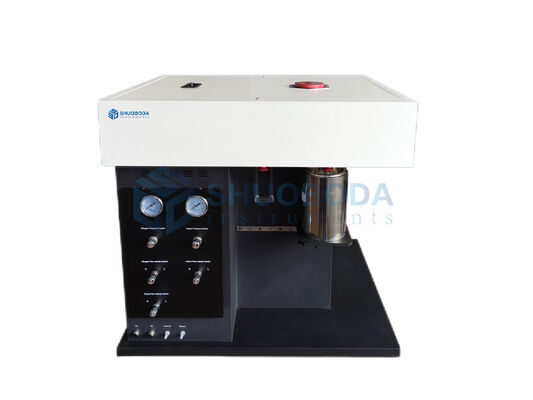

BET-5 BET Specific Surface Area Tester 4 Stations 0.0005m2/g
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | ,L/C,T/T |
| Supply Capacity: | 500 sets/month |
Specific Surface Area Tester 0.0005m2/g
,Specific Surface Area Tester 4 Stations
BET-5 BET specific surface area tester,4 stations, 0.0005m2/g
Product Introduction
BET-5 specific surface area tester uses nitrogen adsorption dynamic method to determine the specific surface area of powders. It has 4 working analysis stations and can test 4 samples at the same time. It is suitable for production enterprises with large output and many varieties.
Analysis range: 0.0005m2/g~unlimited; high test accuracy and good reproducibility.
Using dual-source dynamic gas chromatography, helium as carrier gas and nitrogen as adsorbed gas as test gas, the solid surface of different samples is analyzed, and the specific surface area of powders, particles and other materials in various industries can be quickly tested.
Application areas
Specific surface area analysis of various powders and particles, such as graphite, lithium cobalt oxide, nickel hydroxide, lithium manganate, lithium titanate, lithium carbonate, pharmaceutical powder, catalyst, adsorbent, cement, ceramic raw materials, etc.
Technical specifications
|
Model |
BET-5 |
|
Measuring range |
0.0005m2/g～no upper limit |
|
Measuring principle |
Gas chromatography, low temperature dynamic nitrogen adsorption principle |
|
Reference standard |
ISO-9277/GB/T19587-2004 and other standards |
|
Test accuracy |
Using standard material calibration, measurement error ≤±1% |
|
Sample test tube |
U-shaped sample tube made of high-quality heat-resistant GG material |
|
Test gas |
High-purity helium as carrier gas, adsorption gas is high-purity nitrogen as test gas |
|
Test station |
4 stations, 4 samples are tested at the same time each time |
|
Test method |
Single point test, multi-point (BET), comparative test. |
|
Test steps |
Put the sample into the sample tube, and after sample pretreatment, the test analysis is automatically completed under computer control |
|
Test efficiency |
Each sample test takes about 5 to 7 minutes, and the sample change test operation is convenient, and continuous testing can be performed without shutting down |
|
Analysis software |
The software is fully functional, and the test results are displayed in real time, which is convenient for comparative analysis, saving or printing |
|
Operating system |
Running Windows XP/win7/win10 |
|
Instrument size |
700mm×300mm×600mm (due to irregular product upgrades, the size is for reference only) |
|
Working power supply |
AC220V ±22V 50Hz±0.5Hz |
Performance characteristics
1. 4 workstations, effectively improve the test efficiency, each test of 1 sample is about 5-7 minutes, the test time is short and the efficiency is high.
2. High-sensitivity detector, low working temperature and long life, the detector will not be damaged by changes in gas composition.
3. High-precision constant flow and constant pressure valve, to ensure the uniformity and stability of the test gas, to ensure the accuracy of the test results.
4. The Dewar flask adopts a large-caliber capacity of 500mL and a vacuum glass liner, with a long insulation time.
5. The software is fully functional, convenient for comparative analysis of test results, and supports online saving, viewing or printing.
6. The instrument has a reasonable structure, stable performance, high precision, fast test speed, and no special requirements for the use environment.
