DT-2 Battery Powder Tapped Density Tester Amplitude 50mm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Tapped Density Tester 50mm
,Battery Powder Tapped Density Tester

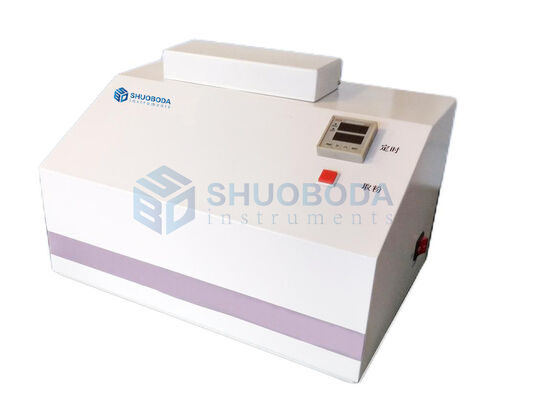

DT-2 Battery Powder Tap Density Tester, Amplitude 50mm
Product Introduction
DT-2 Battery Powder Tap Density Tester, referring to the national standard GB/T5162-2021 and YS/T 677-2008 lithium manganese oxide industry standard, increases the amplitude to 50mm, and is suitable for powders with poor general amplitude tap density.
The instrument consists of a microcomputer timer, an adjustable speed motor, a stainless steel guide workpiece, etc., with a firm and reasonable structure. It is a special tap density tester suitable for the battery material industry.
Application Field
Powder production and processing industries such as metal powder, non-metal powder, chemical industry, lithium battery, and research on powder characteristics in scientific research institutions.
Technical specifications
|
Model |
DT-2 |
|
Vibration amplitude |
50mm±0.2 mm (national standard) |
|
Repeatability error |
≤±1.5% |
|
Vibration frequency |
60 times/min |
|
Test amount |
≦500g (based on the measuring cylinder) |
|
Test items |
Tapped density, loose density |
|
Volatilization method |
Up and down vibration |
|
Number of vibrations |
1-9999 times (set as needed) |
|
Standard measuring cylinder |
3 pieces, inner diameter 16.25mm, depth 80mm |
|
Material of measuring cylinder |
Stainless steel |
|
Data calculation |
Intelligent software |
|
Result output |
Word, PDF, Excel |
|
Input power |
AC 220v Power 110w |
|
Instrument size |
Length 400 width 280 height 270 (mm) |
Product Features
1) Developed in accordance with the national standards of "GB/T 5162-2021 Determination of Tap Density of Metal Powder" and "YS/T 677-2008 Lithium Manganese Oxide".
2) The vibration height is 50mm, and the vibration frequency is fixed at 60 times/min, which is higher than the conventional amplitude and has a better vibration effect, especially suitable for powders such as battery materials.
3) The vibration number is adjustable from 1 to 9999 times, and the vibration number is set by the microcomputer timer.
4) 3 test stations can test 3 samples at the same time, with high test efficiency.
5) 3 stainless steel measuring cylinders with the same volume are standard, which are durable.
6) Most of the instrument is made of 304 stainless steel parts, with a sturdy structure and can work continuously and reliably for a long time.
Special technical software
The special software for the vibration density meter is randomly attached. The software can be installed on any computer. The values recorded in the test are entered into the software to directly calculate the vibration density and bulk density of the powder. The data report can be viewed online, converted to PDF, Word, Excel electronic documents for storage, and paper reports can also be printed online.
