Automatic Tablet Disintegration Test Apparatus High Precision DP-BJ-6CH
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Automatic Tablet Disintegration Test Apparatus
,Disintegration Test Apparatus High Precision

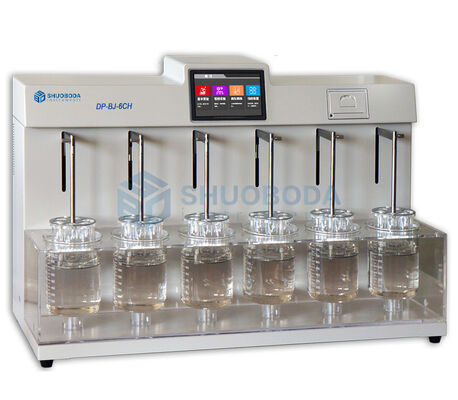

DP-BJ-6CH Automatic Tablet Disintegration Tester
The DP-BJ-6CH Automatic Tablet Disintegration Tester has six basket working position. It complies with the provisions of the 2020 version of the Chinese Pharmacopoeia regarding the disintegration time limit of tablets, capsules, pills, etc., and complies with the new version of GMP specifications. It promptly and accurately records and saves the traceability data of drug disintegration tests (testing process parameters, and quantification of 36 samples). information such as collapse results). Its main technical indicators comply with the requirements of USP, BP and JP on disintegration time limit detection.
Applicable standards
"Chinese Pharmacopoeia" 2020 Edition
Comply with current Chinese GMP regulations
Working environment
Safety performance: complies with the provisions of the "Disintegration Apparatus" of country's pharmaceutical industry standards
Working power supply: AC 220V+10% 50Hz, ≤1000W
Environmental conditions: 5~40°C, humidity <80%
Features:
The real-time display function of the number of lifting and lowering of the hanging basket provides users with a reliable method to monitor the frequency of lifting and lowering of the hanging basket.
At the end of the test, the hanging basket automatically stops at the highest position, making it easier to install and remove the hanging basket and beaker. Scheduled shutdown, scheduled automatic preheating function
Intelligent temperature correction function allows users to easily, conveniently and reliably complete temperature correction through interactive operations
It has temperature abnormality, temperature over-limit alarm and secondary overheating automatic protection functions.
The instrument displays the "year, month, day, hour, minute and second" functions in real time.
Main Specifications:
|
MODEL |
DP-BJ-4CH |
|
Screen display |
High-precision color touch screen, interactive control, intelligent management |
|
Six-basket working position |
Every two hanging baskets form a group (two baskets), which can be raised and lowered independently in groups, or can be raised and lowered simultaneously in three groups (six baskets). |
|
Permission management |
Three levels, multiple users (login method: username + password) |
|
Test data audit trail |
record and save the traceability data of drug disintegration tests in a timely and accurate manner. Compliant audit records can be traced back by date or number, and can also be printed selectively or in full. |
|
Print content |
Print content: sample identification, name, number, water temperature, timing of each basket, number of lifts, disintegration and dissolution ratio: (actual disintegration state ratio of 3 pipelines), tester, supervisor, start test time, end time , test date...... |
|
Working modes |
A. Basic test, the time is counting up, timing can be paused and continued, which is convenient for research tests. B. Program-controlled test, the time is countdown, can be preset and saved to facilitate routine repetitive testing. |
|
Timing range |
Any setting within 24 hours (display resolution, hours: minutes: seconds) |
|
Temperature range |
5~50°C |
|
Temperature accuracy |
0.01°C |
|
Temperature deviation |
≤±0.3°C |
|
Temperature control sensor |
1/3B high-precision Pt1000 |
|
Hanging basket lifting frequency |
30~32 times/minute |
|
Hanging basket lifting amplitude |
(55+0.5) mm |
|
Lifting amplitude accuracy |
≤±0.5mm |
|
Screen cup bottom spacing |
25±1mm |
|
Sieve aperture |
2mm (standard), optional 0.425mm, 0.71mm, 1mm |
|
Number of lifting baskets |
six baskets are displayed independently in real time |
|
Dimensions |
length 830mm, width 350mm, height 550mm |
|
Weight |
30kgs |
|
Language |
Chinese or English |
System configuration
DP-BJ-4DF Intelligent Disintegration Apparatus 1set
Lifting basket 4 sets
Water bath 1 pc
1000ml beaker 4 pcs
Baffle 24 pcs
Micro Printer 1set
