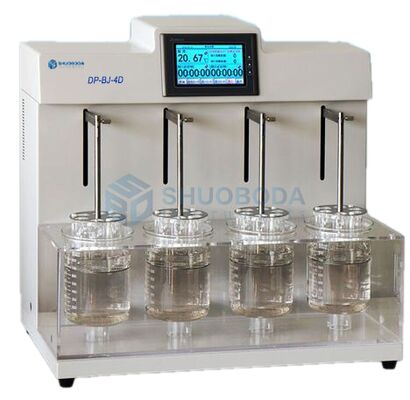

DP-BJ-4D Intelligent Drug Test Machine Disintegration Time Limit Tester 4 Cups

DP-BJ-4D Intelligent Disintegration time limit tester, 4 cups

DP-BJ-4D intelligent disintegration instrument is a high-precision intelligent drug testing instrument developed and produced according to the Chinese Pharmacopoeia's 2015 edition of the disintegration time limit for tablets, capsules and pills. Its main technical indicators are in line with USP, BP, and JP regulations on the detection of disintegration time limits.

working environment:

Ø Safety performance: In accordance with the provisions of China's pharmaceutical industry standards related to the "disintegration instrument"

Ø Working power supply: AC 220V±10% 50Hz ≤800W

Ø Environmental conditions: room temperature 5 ~ 35 ° C humidity <80%

Features:

Ø DP-BJ-4D adopts high-resolution color touch screen, and the human-machine interface is friendly. Users can enjoy intelligent and interactive operation according to the screen prompts.

Ø The instrument has four working positions, one for each two baskets, which can be divided into separate disintegration tests, or four baskets for disintegration test.

Ø The instrument provides two working modes: basic test and program control test; the basic test default temperature is 37 °C, the time is positive timing, the time can be paused, and the time can be connected to facilitate the research test. The program-controlled test can preset the temperature and time limit arbitrarily, and save it automatically. The time is countdown, which is convenient for routine repeatability test.

Ø The real-time basket lift display function provides users with a reliable method to monitor the lifting frequency of the basket.

Ø It can provide temperature control solution below room temperature water bath, and realizes stepless preset and constant temperature control from 5 °C to 50 °C. The temperature control resolution reaches 0.01 °C.

Ø At the end of the test, the basket is automatically parked at the highest position for easy loading of the basket and beaker.

Ø The instrument provides timed shutdown and timed automatic warm-up function.

Ø The instrument provides intelligent temperature correction function, which allows users to easily and easily perform temperature correction through interactive operation.

Ø The instrument has temperature abnormality, temperature over limit alarm and secondary overheating automatic protection function.

Ø The instrument provides real-time display of “year, month, day, hour, minute, second” function.

Ø The instrument provides two kinds of operation interface in Chinese and English, one button to switch.

Main Specifications:
