ODT Orally Disintegrating Tablet Disintegration Tester DP-BJ-2UF
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Orally Disintegrating Tablet Disintegration Tester
,ODT Tablet Disintegration Tester

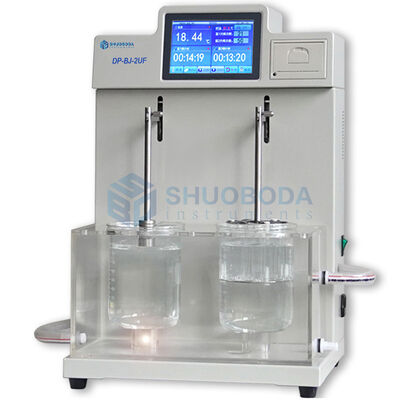

DP-BJ-2UF Orally Disintegrating Tablets (ODTs) Disintegration Tester
DP-BJ-2UF Orally Disintegrating Tablets (ODTs) Disintegration Tester is developed and produced by shuoboda, in accordance with the provisions of the 2020 edition of the "Chinese Pharmacopoeia" on the disintegration time limit of orally disintegrating tablets, tablets, capsules, pills, etc. A high-precision intelligent disintegration time limit dual-purpose instrument that can complete both conventional disintegration tests and orally disintegrating tablet tests. Its main technical indicators comply with the requirements of USP, BP and JP on disintegration time limit detection.
Applicable standards
"Chinese Pharmacopoeia" 2020 Edition
Comply with current Chinese GMP regulations
Working environment
Safety performance: complies with the provisions of the "Disintegration Apparatus" of country's pharmaceutical industry standards
Working power supply: AC 220V+10% 50Hz, ≤800W
Features:
Scheduled shutdown and scheduled preheating functions.
Intelligent interactive temperature correction function.
Temperature abnormality, temperature over-limit alarm and secondary overheating automatic protection function.
The instrument provides real-time display of "year, month, day, hour, minute and second" function.
Main Specifications:
|
MODEL |
DP-BJ-2UF |
|
Screen display |
High-precision color touch screen, interactive control, intelligent management |
|
Two baskets |
Each basket can be raised and lowered independently |
|
Permission management |
Three levels, multiple users (login method: username + password) |
|
Audit trail query |
Can query by date or number, and you can print it selectively or in full. |
|
Print content |
sample name, logo, number, working water temperature, basket timing, number of lifts, quantitative disintegration test results, tester, supervisor, start test time, end time, test date... |
|
Working modes |
A. Basic test, the time is counting up, timing can be paused and continued, which is convenient for research tests. B. Program-controlled test, the time is countdown, can be preset and saved to facilitate routine repetitive testing. |
|
Timing range |
Any setting within 24 hours (display resolution, hours: minutes: seconds) |
|
Temperature range |
5°C~50°C |
|
Temperature accuracy |
0.01°C |
|
Temperature deviation |
≤±0.3°C |
|
Hanging basket lifting frequency |
30~31 times/minute |
|
6-hole conventional disintegration hanging basket lifting amplitude |
(55+0.5) mm |
|
Orally disintegrating tablets disintegrating hanging basket |
(10+0.5) mm |
|
Lifting amplitude accuracy |
≤±0.5mm |
|
The distance between the disintegration hanging basket sieve and the bottom of the cup |
25±1mm |
|
Basket lifting count |
independent real-time display of the times of lifts and lowerings of the two baskets |
|
Sieve aperture |
6-hole disintegrating basket screen 2mm, orally disintegrating tablets disintegrating basket 710um |
|
Dimensions |
length 570mm, width 350mm, height 550mm |
System configuration
DP-BJ-2UF Intelligent Disintegration Apparatus 1set
6-hole conventional disintegration hanging basket 1set
Orally disintegrating tablets disintegrating hanging basket 1set
Water bath 1 pc
1000ml beaker 2 pcs
Baffle 6 pc
Micro Printer 1set
