Automatic Disintegration Time Limit Testing Apparatus 3 Cups
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DP-BJ-3CPRO
Temperature Range:
5°C~50°C
Temperature Accuracy:
0.01°C
Temperature Deviation:
≤±0.3°C
Temperature Control Sensor:
1/3B High-precision Pt1000
Hanging Basket Lifting Frequency:
30~32 Times/minute
Basket Lifting Count:
Independent Real-time Display Of The Number Of Lifts And Lowerings Of The Three Baskets
Highlight:
Disintegration Time Limit Testing Apparatus
,Automatic Time Limit Testing Apparatus
Product Description

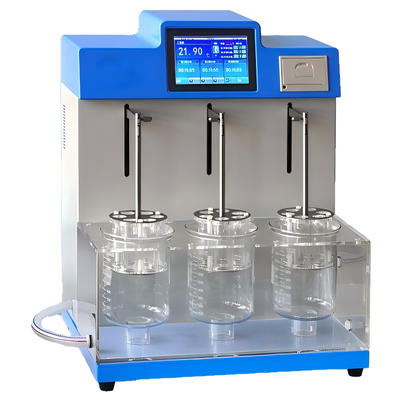

Automatic Disintegration Time Limit Testing Apparatus 3 Cups
Product Overview
The DP-BJ-3CPro Intelligent Disintegration Tester is a high-precision, intelligent instrument designed for professional users. It complies with disintegration time limit specifications for tablets, capsules, and pills as outlined in the 2025 edition of the Chinese Pharmacopoeia, while also meeting testing requirements of USP, BP, and JP standards.
System Configuration
- DP-BJ-3CPro Intelligent Disintegration Apparatus: 1 set
- Lifting basket: 3 sets
- Water bath: 1 piece
- 1000ml beaker: 3 pieces
- Baffle: 18 pieces
Operating Conditions
- Safety performance: Complies with relevant Chinese pharmaceutical industry standards
- Power supply: AC 220V ±10%, 50Hz, ≤600W
- Environmental conditions: Ambient temperature 5-35°C; humidity <80%
Technical Specifications
| Feature | Specification |
|---|---|
| Configuration | Three-basket design with independent or synchronous operation |
| Access Control | Password-protected hierarchical login |
| Display | High-resolution color touchscreen |
| Operating Modes | Basic test (count-up timer) and Programmed test (count-down timer) |
| Timing Range | Arbitrarily set within 24-hour period |
| Temperature Control | 5°C to 50°C range with 0.01°C resolution |
| Temperature Accuracy | ≤±0.3°C |
| Lifting Frequency | 30-31 cycles/minute |
| Lifting Amplitude | 55 mm (±0.5 mm accuracy) |
| Mesh to Cup Bottom | 25 mm distance |
| Mesh Aperture | 2 mm standard (0.425 mm, 1 mm, 0.71 mm optional) |
| Dimensions | 570 mm × 350 mm × 550 mm (L×W×H) |
| Weight | 23 kg |
Advanced Features
- Real-time display of basket lifting cycles for frequency monitoring
- Automatic basket positioning at highest position upon test completion
- Scheduled shutdown and automatic preheating functions
- Intelligent temperature calibration through interactive operations
- Temperature anomaly alarms and secondary overheat protection
- Real-time date and time display
- Bilingual Chinese/English interface with single-key switching
- Comprehensive audit trail records with printing support
Applicable Standards
- Pharmacopoeia of the People's Republic of China (2025 Edition)
- Current Chinese GMP regulations
- USP, BP, and JP disintegration testing requirements
