DP-BJ-2DF 800W Intelligent Disintegration Time Limit Tester 2 Cups
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
800W Disintegration Time Limit Tester
,Disintegration Time Limit Tester 2 Cups
P-BJ-2DF Intelligent Disintegration time limit tester, 2 cups

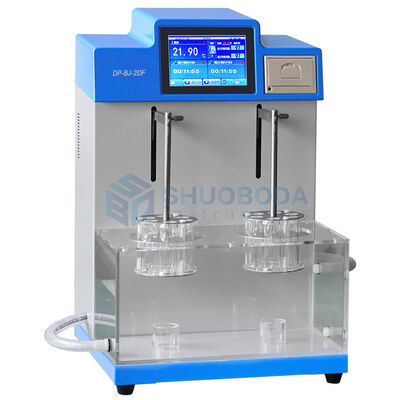

DP-BJ-2DF intelligent disintegration time limit tester is developed and produced by shuoboda, in accordance with the regulations on the disintegration time limit of tablets, capsules, pills, etc. in the 2020 edition of the "Chinese Pharmacopoeia". A high-precision intelligent disintegration time limiter that records the disintegration test process and results. Its main technical indicators also comply with the requirements of USP, BP and JP on disintegration time limit detection.
Working environment
Safety performance: Comply with the provisions of the "Disintegration Apparatus" of my country's pharmaceutical industry standards
Working power supply: AC 220V10% 50Hz, 800W
Applicable standards
"Chinese Pharmacopoeia" 2020 Edition
Comply with current Chinese GMP regulations
Features:
Unconditional audit trail record + traceability function
With scheduled shutdown and scheduled preheating function
With intelligent interactive temperature correction function
Equipped with temperature abnormality, temperature over-limit alarm and secondary overheating automatic protection functions
The instrument displays "year, month, day, hour, minute and second" in real time
Main Specifications:
|
MODEL |
DP-BJ-2DF |
|
Screen display |
High-precision color touch screen, interactive control, intelligent management |
|
Two baskets |
Each basket can be raised and lowered independently or simultaneously. |
|
Permission management settings |
Three levels, multiple users (login method: username + password) |
|
Audit trail query |
Can query by date or number, and you can print it selectively or in full. |
|
Print content |
Sample name, logo, number, working water temperature, basket timing, number of lifts, quantitative disintegration test results (disintegration state ratio of 12 pipelines), tester, supervisor, start test time, end Time, test date... |
|
Working modes |
A. Basic test, the time is counting up, timing can be paused and continued, which is convenient for research tests. B. Program-controlled test, the time is countdown, can be preset and saved to facilitate routine repetitive testing. |
|
Timing range |
Any setting within 24 hours (display resolution, hours: minutes: seconds) |
|
Temperature range |
5°C~50°C |
|
Temperature accuracy |
0.01°C |
|
Temperature deviation |
≤±0.3°C |
|
Hanging basket lifting frequency |
30~32 times/minute |
|
Basket lifting count |
independent real-time display of the number of lifts and lowerings of the two baskets |
|
Hanging basket lifting amplitude |
(55+0.5) mm |
|
Lifting amplitude accuracy |
≤±0.5mm |
|
Screen cup bottom spacing |
25±1mm |
|
Sieve aperture |
2mm (standard), optional 0.425mm, 0.71mm, 1mm |
|
Dimensions |
length 570mm, width 350mm, height 550mm |
|
Language |
Chinese and English |
System configuration
1. DP-BJ-2DF Intelligent Disintegration Apparatus 1set
2. Lifting basket 2 sets
3. Water bath 1pc
4. 1000ml beaker 2 pcs
5. Baffle 12 pcs
6. Micro Printer 1set
