Automatic Disintegration Time Limit Testing Apparatus 3 Cups DP-BJ-3C
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Disintegration Time Limit Testing Apparatus
,Automatic Time Limit Testing Apparatus

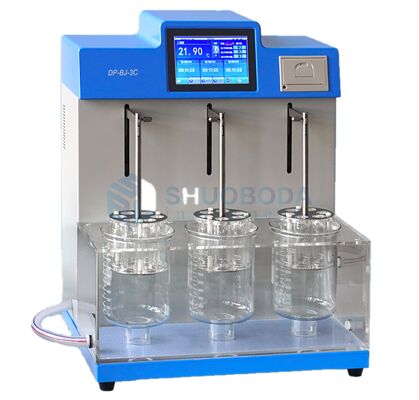

DP-BJ-3C Automatic Disintegration Time Limit Testing Apparatus, 3 cups
DP-BJ-3C intelligent disintegration time limit testing apparatus is developed and produced by shuoboda, in accordance with the regulations on the disintegration time limit of tablets, capsules, pills, etc. in the 2020 edition of the "Chinese Pharmacopoeia". A high-precision intelligent disintegration time limiter that records the disintegration test process and results. Its main technical indicators also comply with the requirements of USP, BP and JP on disintegration time limit detection.
Applicable standards
"Chinese Pharmacopoeia" 2020 Edition
Comply with current Chinese GMP regulations
Working environment
Safety performance: complies with the provisions of the "Disintegration Apparatus" of country's pharmaceutical industry standards
Working power supply: AC 220V+10%50Hz, 600W
Environmental conditions: 5~35°C, humidity <80%
Features:
The real-time display function of the number of lifting and lowering of the hanging basket provides users with a reliable method to monitor the frequency of lifting and lowering of the hanging basket.
At the end of the test, the hanging basket automatically stops at the highest position, making it easier to install and remove the hanging basket and beakers.
The instrument provides scheduled shutdown and scheduled automatic preheating functions.
The instrument provides an intelligent temperature calibration function. Users can easily, conveniently and reliably complete temperature calibration through interactive operations.
The instrument has temperature abnormality, temperature over-limit alarm and secondary overheating automatic protection functions.
The instrument provides real-time display of "year, month, day, hour, minute and second" function.
Main Specifications:
|
MODEL |
DP-BJ-3C |
|
Screen display |
High-precision color touch screen, interactive control, intelligent management |
|
Three baskets |
Each basket can be raised and lowered independently or simultaneously. |
|
Permission management |
Three levels, multiple users (login method: username + password) |
|
Audit trail query |
Can query by date or number, and you can print it selectively or in full. |
|
Print content |
Sample identification, name, number, water temperature, timing of each basket, number of lifts, quantitative disintegration test results (actual disintegration ratio of 18 samples) tester, supervisor, start test time, end time, test date ....... |
|
Working modes |
A. Basic test, the time is counting up, timing can be paused and continued, which is convenient for research tests. B. Program-controlled test, the time is countdown, can be preset and saved to facilitate routine repetitive testing. |
|
Timing range |
Any setting within 24 hours (display resolution, hours: minutes: seconds) |
|
Temperature range |
5°C~50°C |
|
Temperature accuracy |
0.01°C |
|
Temperature deviation |
≤±0.3°C |
|
Temperature control sensor |
1/3B high-precision Pt1000 |
|
Hanging basket lifting frequency |
30~32 times/minute |
|
Basket lifting count |
independent real-time display of the number of lifts and lowerings of the three baskets |
|
Hanging basket lifting amplitude |
(55+0.5) mm |
|
Lifting amplitude accuracy |
≤±0.5mm |
|
Screen cup bottom spacing |
25±1mm |
|
Sieve aperture |
2mm (standard), optional 0.425mm, 0.71mm, 1mm |
|
Dimensions |
length 570mm, width 350mm, height 550mm |
|
Weight |
23kgs |
|
Language |
Chinese or English |
System configuration
DP-BJ-3C Intelligent Disintegration Apparatus 1set
Lifting basket 3 sets
Water bath 1pc
1000ml beaker 3pcs
Baffle 18 pcs
Micro Printer 1set
