DP-BJ-3 Automatic Tablet Disintegration Test Machine 3 Basket Assembly
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Automatic Disintegration Test Machine
,Tablet Disintegration Test Machine

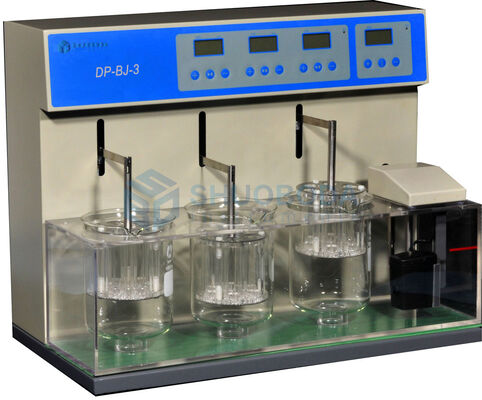

DP-BJ-3 Automatic Tablet Disintegration Tester
Description
BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Specifications
Ø Detecting disintegration of solid
Ø There are eighteen tubes in three basket assemblies
Ø Automation
Ø Disintegration tester
Applicable standards:
Ø National standard (Chinese codex)/2005/
Ø Corporate standard (Disintegration tester) Q/12XQ0188-2004
Features:
1. There are eighteen tubes in three basket assemblies.
2. Each test station is driven independently. Auto stop at timing point.
3. The bath liquid can achieve an even temperature.
4. AMPU is used to automatically control the temperature, time and frequency of nacelle up and down.
5. Parameters can be preset at any time. The preset and real data can be displayed in time.
6. Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters:
|
Model |
DP-BJ-3 |
|
Basket assembly |
3 |
|
Nacelle up and down frequency |
30 - 32 time/min |
|
Nacelle up and down range |
54-56 mm |
|
Automatic time range |
1-900 minutes |
|
Time accuracy |
+/- 0.5 minute |
|
The cubage of beaker |
1000 ml |
|
The quantity of glass tube |
18 pcs |
|
Controlling temperature range |
Room temperature to 45 °C |
|
Accuracy of controlling temperature |
+/- 0.5 °C |
|
Power |
600 W |
|
Power supply |
AC, 220V/50HZ or 110V/60HZ 1 phase |
|
Net weight |
22 kg |
|
Overall size |
540 x 300 x 420 mm |
