DP-BJ-2 Automatic Tablet Disintegration Apparatus 600W
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Tablet Disintegration Apparatus 600W
,Automatic Tablet Disintegration Apparatus

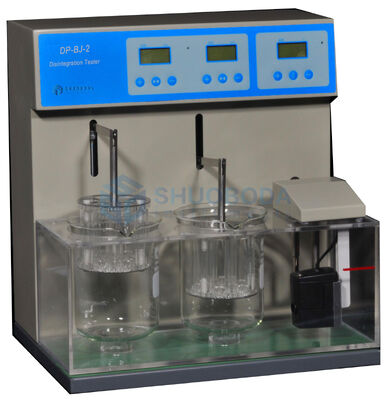

DP-BJ-2 Automatic Tablet Disintegration Tester
Descriptions
DP-BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Specifications
Ø Detecting disintegration of solid
Ø There are twelve tubes in two basket assemblies
Ø Automatic Disintegration tester
Applicable Standards
Ø National standard (Chinese codex)/2005/
Ø Corporate standard (Disintegration tester) Q/12XQ0188-2004
Main Features
1. The double basket working station system determines the disintegration time.
2. 2 sets of hanging baskets can conduct disintegration experiments independently.
3. Electronic temperature sensors display and monitor the temperature at various points in the water bath and in the beaker. Using high-precision digital electronic sensors, it can ensure high precision and accuracy of the water bath temperature without calibration.
4. Automatically control the water bath temperature to 37.0°C (pharmacopoeia regulations). And the preset temperature can be reset at any time.
5. The lifting time of the hanging basket is automatically set to 15 minutes, and can be reset at will.
6. It adopts computer control technology with single-chip microcomputer as the core to intelligently control two performance parameters: water bath temperature and working time.
7. With function of monitoring the water bath temperature, overheating alarm and automatic protection.
Specifications
|
MODEL |
DP-BJ-2 |
|
Basket Assembly |
2 pcs |
|
The quantity of glass tube |
12pcs |
|
The cubage of beaker |
1000ml |
|
Basket up and down frequency |
(30-32)times／min |
|
Basket up and down range |
(55±1) mm |
|
Minimum screen spacing |
(25±2) mm |
|
Time setting range |
(1-900) minutes |
|
Timing accuracy |
±0.5 min |
|
Preset temperature range |
(20-45) °C |
|
Automatic temperature control precision |
±0.5°C |
|
Heater power |
500W |
|
Continuous working time |
＞24hours |
|
Power supply |
220V/50Hz |
|
power |
600W |
|
Dimension |
400 X300 X420 mm |
|
Weight |
16KG |
