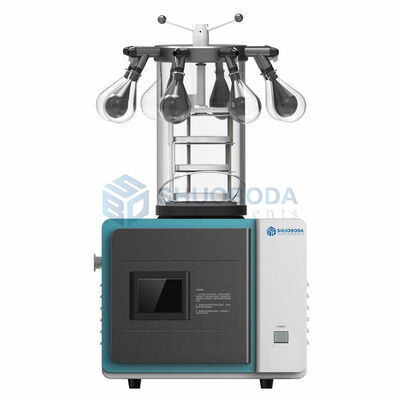

DA Series Lab Vacuum Freeze Dryer Programmable Laboratory Lyophilizer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DA Series
Control:
Programmed
Display:
LCD Touch Display
Condenser Temperature:
-55°C -85°C
Water Capture:
3L
Ice Capture:
4L
Dry Area (m2):
0.12
Highlight:
Vacuum Freeze Dryer 900W
,Vacuum Freeze Dryer 1400W
,Programmable Laboratory Lyophilizer
Product Description
DA Series Laboratory Vacuum Freeze Dryer
Laboratory Vacuum Freeze Dryer Features
- Touch LCD display with microprocessor controller, easy to use.
- Dry chamber using aircraft grade acrylic materials, non-adhesive, high strength, and no leaks.
- Condenser pre-cooling function.
- Used DANFOSS compressor.
- Vacuum pump in Japan or Korea brand, with oil-mist filter can trapping oil mist in the exhaust gas, reduce environmental and health hazards.
- Can charge nitrogen or inert gas to save after drying.
- Programmable, freezing, drying and defrosting will be program controlled.
- Automatic control system: Temperature heating control for each shelf, heating circulation monitoring protect, fuzzy PID control algorithm.
- Defrost system: Auto Non-electric heating defrost, more safety and fast.
- Vacuum regular system: vacuum degree regular in sublimation and drying process to avoid special material foaming or blowing, accelerate lyophilized efficiency (Optional)
- Pulse backfill system: slow, medium, fast three kinds of backfilling mode selection, avoiding the granular material and flocculent material being blown out effective loss problem inflatable produce. (Optional)
- Automatic drainage system: interlock with vacuum system after draining to prevent any failure in vacuum system. (Optional)
- Can be work in automatic or manual operation, manual mode is used to explore the process parameters, automatic mode for process maturity.
- Data recording system: 1) data can be stored in machine in 3 months; 2) External U-disk storage (Optional); 3) PC-database storage (Optional)
- Monitoring system: real time system temperature and vacuum degree monitored, acquisition frequency 50ms / time.
- Lyophilization process recipe storage function: can store 500 set of fixed or user-defined lyophilized formulation process.
- PC remote monitor system: remote monitor working status of machine, max 1.5km distance (Optional)
- Eutectic point test function (Optional)
- Calibration function: temperature and vacuum calibration ensures long-term accuracy of the measured values.
- Freeze-drying curve searchable.
Laboratory Vacuum Freeze Dryer Safety Protection
- Over-current protection
- Over-load protection
- Over-heating of temperature
- Vacuum defense in processing
- 36V safety voltage for heating system
- Vacuum pump protection
Laboratory Vacuum Freeze Dryer Configuration Instruction
 Normal type(R): suitable for bulk material |
Stoppering type(S): suitable for sealing vials material |
Flask-mount type(F): suitable for external flask material |
Stoppering with flask-mount type (FS): suitable for bulk, external flask and vials material |
T-manifold type(T): Suitable for external vials or flasks material |
-80°C condenser type |
Laboratory Vacuum Freeze Dryer Specification
| Model | DA-1R-50 DA-1R-80 |
DA-1S-50 DA-1S-80 |
DA-1F-50 DA-1F-80 |
DA-1FS-50 DA-1FS-80 |
DA-1T-50 DA-1T-80 |
| Type | Normal | Stoppering | Flask-manifold | Stoppering & Flask-manifold | T-manifold |
| Control | Programmed | Programmed | Programmed | Programmed | Programmed |
| Display | LCD touch | LCD touch | LCD touch | LCD touch | LCD touch |
| Condenser temperature | -55°C -85°C | -55°C -85°C | -55°C -85°C | -55°C -85°C | -55°C -85°C |
| Water/ice capture | 3L 4L | 3L 4L | 3L 4L | 3L 4L | 3L 4L |
| Compressor power | 7/8HP 2/3HP * 2 | 7/8HP 2/3HP * 2 | 7/8HP 2/3HP * 2 | 7/8HP 2/3HP * 2 | 7/8HP 2/3HP * 2 |
| Defrost | Yes | Yes | Yes | Yes | Yes |
| Dry area (m2) | 0.12 | 0.08 | 0.12 | 0.08 | - |
| Shelf | 4 pcs | 3 pcs | 4 pcs | 3 pcs | - |
| Vacuum | < 8 Pa | < 8 Pa | < 8 Pa | < 8 Pa | < 8 Pa |
| Power | 900W 1400W | 900W 1400W | 900W 1400W | 900W 1400W | 900W 1400W |
| Voltage | 220/50 110/60 | 220/50 110/60 | 220/50 110/60 | 220/50 110/60 | 220/50 110/60 |
| Dimensions (W*D*H)mm | 470*600*400 640*640*1000 | 470*600*400 640*640*1000 | 470*600*400 640*640*1000 | 470*600*400 640*640*1000 | 470*600*400 640*640*1000 |
Optional item for Laboratory Vacuum Freeze Dryer
| Item ref. | Item name | Item ref. | Item name |
| DA10001 | Vacuum regular system, Vacuum trimming needle * 1 + vacuum solenoid valve +1 | DA10024 | Paperless recorder, with USB interface |
| DA10002 | Eutectic point tester (economic type), measuring temperature & resistance value | DA10025 | Remote controlling & monitoring system, RS485 |
| DA10003 | Eutectic point tester (standard), measuring temperature & resistance value online & offline, with software | DA10026 | Anti-back oil solenoid valve, SEGV brand |
| DA10004 | T type 16 port manifold | DA10027 | 6 shelves with tray dry chamber |
| DA10005 | T type 24 port manifold | DA10028 | 8 shelves with tray dry chamber |
| DA10006 | T type 52 port manifold | DA10029 | 4 shelves with trays, 12 port manifold-flasks |
| DA10007 | T type 104 port manifold | DA10030 | 6 shelves with trays, 12 port manifold-flasks |
| DA10008 | Ampoules sealer, sealing torch with tank | DA10031 | 8 shelves with trays, 12 port manifold-flasks |
| DA10009 | Vial capper, suitable for 12~30mm | DA10032 | 3 shelves with trays, 12 port manifold-flasks with stoppering device |
| DA10010 | Jars adapter (Wide neck) | DA10033 | Auto water drain device, include solenoid valve, drain pipe & interface |
| DA10011 | Pulse backfill system, Backfill solenoid valve *1+ pipe and adapter | DA10034 | Mini dot matrix printer |
| DA10012 | Backfill filter, 0.2u filter | DA10035 | Oil mist filter, SEGV |
| DA10013 | Backfill interface, USA APG, 8mm | DA10036 | Oil mist filter, BWVAC |
| DA10014 | PC-database storing system | DA10037 | Oil mist filter, ULVAC |
| DA10015 | U-disk data recording system, for online/offline analysis | DA10038 | Oil mist filter, Leybold |
| DA10016 | BWVAC Vacuum pump 1.5L/S | DA10039 | ULVAC Vacuum pump 1L/S |
| DA10017 | BWVAC Vacuum pump 3L/S | DA10040 | ULVAC Vacuum pump 2L/S |
| DA10018 | BWVAC Vacuum pump 6L/S | DA10041 | ULVAC Vacuum pump 4L/S |
| DA10019 | BWVAC Vacuum pump 8L/S | DA10042 | Sample temperature monitor, display range -50~100°C |
| DA10020 | Leybold Vacuum pump 2L/S | ||
| DA10021 | Leybold Vacuum pump 4L/S | ||
| DA10022 | Leybold Vacuum pump 6L/S | ||
| DA10023 | Leybold Vacuum pump 8L/S |
