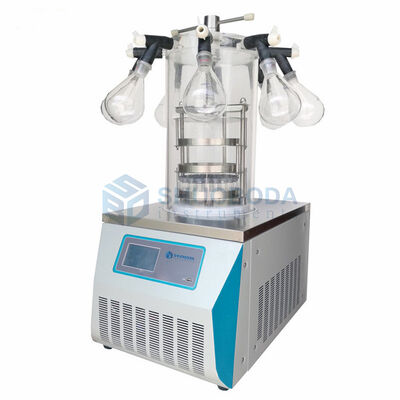

SBD-10 Series Air Cooled Laboratory Freeze Dryers With Manifold System
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
SBD-10 series
Dry Chamber Size:
Ф260×430mm
Total Shelf Area:
0.12 M2
Shelf Size(mm):
Ф200*4pcs
Shelf Space Height (mm):
70
Shelf Number:
4 Pcs
Trays Number:
4 Pcs
Highlight:
Laboratory Freeze Dryers
,Manifold System Laboratory Freeze Dryers
,Air Cooled Lab Freeze Dryers
Product Description
SBD-10 series Laboratory Freeze Dryers
Description
Vacuum freezing dryer is widely used in the medical, pharmaceutical, biological, chemical and food and other fields, SBD series is suitable for laboratory use or low-volume production to meet the requirements of most laboratories conventional lyophilization.
Features
- Microprocessor control & LCD touch display which can display drying curve, vacuum, condenser temp., run time, ambient temperature.
- Pre-freezing function for samples.
- Large refrigerating capacity and slight noise of DANFOSS(SECOP) compressor with CFC-FREE refrigerant.
- 304 stainless steel of condenser, table-top, racks & shelves to ensure corrosion-resistant and easy to clean; shelves height adjustable.
- Transparent drying chamber is safe and easy to observe;
- Novel design, small size and easy operation;
- For water based samples, the -55°C condenser is the perfect choice with effective cost. For samples containing solvents or with low eutectic points,
- the -80 C dual cascade refrigeration condenser provides maximum performance (optional).
- For labs that needs quick turn-around, electric heating defrost is optional.
- Nitrogen inflation valve is available.
- It includes the following types: Normal type, Top-press type, multi-manifold T type and multi-manifold Top-press type to meet the various requirements.
- CE/ISO 9001 13485 14001 certificated.
Specifications of SBD-10 Laboratory Freeze Dryers
| Model | SBD-10-R | SBD-10-MR | SBD-10-TP | SBD-10-MTP | SBD-10-MT | |
| Dry chamber size (D*H) | Ф260×430mm | Ф260×465mm | Ф260×490mm | Ф260×540mm | / | |
| Total shelf area | 0.12 m2 | 0.12 m2 | 0.08m2 | 0.08m2 | / | |
| Shelf size(mm) | Ф200*4pcs | Ф200*4pcs | Ф180 * 3pcs | Ф180 * 3pcs | / | |
| Shelf space height (mm) | 70 | 70 | 70 | 70 | / | |
| Shelf number | 4 pcs | 4 pcs | 3 pcs | 3 pcs | / | |
| Trays number | 4 pcs | 4 pcs | 3 pcs | 3 pcs | / | |
| Vials load capacity | Ф12mm | 920 Pcs | 920 Pcs | 560 Pcs | 560 Pcs | 24 ports 430×480mm (H*L) |
| Ф16mm | 480 Pcs | 480 Pcs | 285 Pcs | 285 Pcs | ||
| Ф22mm | 260 Pcs | 260 Pcs | 165 Pcs | 165 Pcs | ||
| Sample load capacity | 1.2L | 1.2L | 0.8L | 0.8L | / | |
| Flask | / | 8 pcs | / | 8 pcs | / | |
| Dry rack | Included | Included | Included | Included | / | |
| Cold trap rack | Included | Included | Included | Included | Included | |
| Condenser Temp. | <-55°C (-80°C or even lower is optional) | |||||
| Cold trap size. | Ф215 * 140 mm (Depth * Height), 5 liters | |||||
| Ice remove capacity | 3~4kg/24hours | |||||
| Cold type | Air-cooled | |||||
| Defrost type | Natural (Electric is optional) | |||||
| Ultimate Vacuum | <5 Pa (empty) | |||||
| Vacuum pump | Included | |||||
| Pump rate | 2L/S | |||||
| Install Power | 970W | |||||
| Voltage | 220v/50Hz or 110v/60Hz | |||||
| Dimensions | 460*625* (370+430)(mm) | |||||
| Weight | 100 kg | 110kg | 105kg | 120kg | 65kg | |
Specifications of vacuum pump
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2C | 2XZ-4C | 2XZ-6C | 2XZ-8C | 2XZ-15C | ||||
| Pumping Speed: L/S | 0.5 | 1 | 2 | 4 | 6 | 8 | 15 | ||||
| Ult. Vacuum Pa | Without gas ballast | ≤6×10-2 | |||||||||
| With gas ballast | ≤6.5 | ≤1.33 | |||||||||
| Speed: r/min(50HZ) | 1400 | ||||||||||
| Power Required: Kw | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | ||||
| Diameter of inlet port: mm | 16 | 16 | 25 | 25 | 40 | 40 | 40 | ||||
| Temp. rise of pump oil: °C | ≯40 | ≯45 | ≯45 | ≯65 | ≯70 | ||||||
| Oil capacity: L | 0.60 | 0.70 | 0.10 | 1.2 | 2.0 | 3.0 | 4.0 | ||||
| Overall Dimensions: mm | 447 168 260 | 469 168 260 | 514 168 282 | 514 168 282 | 565 200 342 | 650 240 430 | 770 240 430 | ||||
| Weight: kg | 16 | 17 | 20 | 22 | 40 | 60 | 75 | ||||
Standard Configuration
- Stainless steel condenser with opening, stainless steel operation tops, seamless welding with round corner which is anti-corrosion and easy to clean
- Stainless steel shelf & rack, 4 or 6 pcs shelves optional, shelf removable and spacing height adjustable
- Stainless steel pre-cooling rack with metal cover
- Integrally molded glass dried barrel adopted special plastic will not break
- Used SECOP (DANFOSS) quality compressor, high performance condenser fan, LCD touch display, history data can be stored, searched and exported to computer.
| Model | R | TP | MR | MTP | MT |
| Description | Normal type | Stopper device | Stopper + flasks | Flasks system | Multi-ports manifold |
| Freeze Dryer | ● | ● | ● | ● | ● |
| Glass barrel | ● | ● | ● | ● | |
| Vacuum pump | ● | ● | ● | ● | ● |
| Stoppering device | ● | ● | |||
| Manifold Ports | 8 ports (28/ 32mm), each 2 in 1000ml, 500ml, 250ml, 100ml | 12 or 24 ports | |||
Optional items
| Item No. | Item Name | Item No. | Item Name |
| SBD1001 | -80°C Condenser | SBD10091000 | 1000ml flask |
| SBD1002 | Defrost device | SBD1010 | Eutectic point test device |
| SBD1003 | Refrigerant R404a, R502, R23 and etc | SBD1011 | Vacuum regular nozzle valve |
| SBD1004 | Oil mist filter | SBD1012 | Vacuum regulating(control) electromagnetic valve |
| SBD1005 | Shelves heating & Program segment control Can stored 16 programs, each program can be set up 36segments, correct program data in computing, memorize the drying curve | SBD1013 | Wide-mouth flasks(jar) |
| SBD1006 | 6pcs shelves instead of 4 pcs | SBD1014 | Change to SS316 condenser & shelves |
| SBD1007 | Leybold vacuum pump | SBD1015 | Capacitance type vacuum gauge |
| SBD1008 | Anti-back oil device | SBD1016 | Backfill filter |
| SBD1009100 | 100ml flask | SBD1017 | Add pressure gauge on the machine |
| SBD1009250 | 250ml flask | ||
| SBD1009500 | 500ml flask |
Note: 1. SBD1010 & SBD1011 is depends on SBD1005
