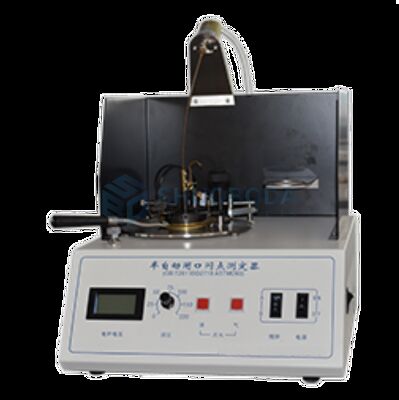

Semi Automatic Closed Cup Flash Point Testing Machine ASTM D93 BD-D93-002B

BD-D93-002B semi-automatic closed flash point tester

Application:

This instrument uses the Penski-Martin closed cup method to measure the flashover of flammable liquids (such as diesel, kerosene, insulating oil, fuel oil, etc.), liquids with suspended particles, liquids whose surfaces tend to form films under test conditions, and other liquids. pip value. This instrument is suitable for measuring flash point values above 40 °C.

Applicable standards

GB/T 261 ASTM D93

Performance characteristics

1. The ignition device of the instrument is pulse discharge ignition, which is very safe to operate. Using buttons to operate the ignition is safe and convenient.

2. The opening/closing of the instrument's test cup lid and the starting/stopping of the stirring device are all controlled by buttons, making the actual operation very convenient.

3. The instrument is equipped with a semi-enclosed windshield, which can reduce the impact of strong light and air flow on the experiment.

4. The heating system of the instrument adopts digital display voltage regulation and temperature control, and the heating rate can be adjusted according to needs.

5. The instrument is equipped with a switch to select the A flash point experimental method and the B flash point experimental method. The corresponding experimental method can be selected according to different experimental samples.

Technical indicators

1. Working power supply: AC220V±10% 50Hz standard 10A plug

2. Heating power: 230W

3. Electric furnace heating voltage: adjustable

4. Motor rotation speed: Method A-105r/min±10r/min Method B-250r/min±10r/min

Overall dimensions: 340×390×330(mm)
