Penski Martin Automatic Closed Cup Flash Point Tester BD-D93-261A
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Automatic Closed Cup Flash Point Tester
,Penski Martin Closed Cup Flash Point Tester

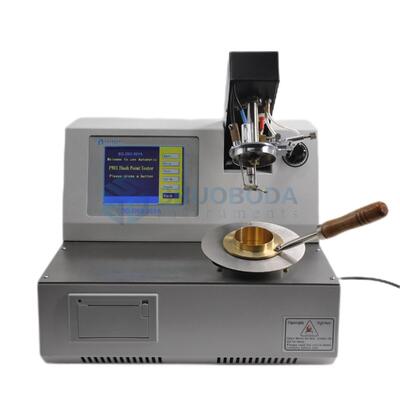

BD-D93-261A Penski-Martin automatic closed cup flash point tester
Product description:
BD-D93-261A automatic closed cup flash point tester is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T261 "Determination of Flash Point - Penski-Martin Closed Cup Method". It is suitable for measuring the flash point of flammable liquids with a flash point higher than 40°C, liquids with suspended particles, liquids whose surfaces tend to form films under test conditions, and other liquids according to the methods specified in this standard.
Main Features:
The instrument can store 120 sets of data.
The influence of atmospheric pressure on the test can be corrected and the correction value can be calculated.
Scanning, detecting, and printing data are automatically completed, and the test arm automatically rises and falls.
Main technical parameters and indicators
1. Working power supply: AC (220±10%) V 50Hz;
2. Machine power consumption: ≤500W;
3. Temperature measurement: Range: room temperature ~ 300°C; Temperature display unit: 0.1℃;
4. Sample heating rate: Step A: (5～6)℃/min; Step B: (1～1.5)℃/min;
5. Stirring speed: (1) (90~120)r/min, suitable for test step A; (2) (250±10)r/min, suitable for test step B;
6. Fire gas source: pipeline gas or liquefied petroleum gas;
7. Applicable environment: Temperature: (15～35)℃; Relative humidity: ≤85%;
1. Overall dimensions: 410mm×360mm×310mm (length×width×height);
2. Net weight of the instrument: 14.5kg.
BD-D93-261A standard configuration
|
No. |
Item |
Unit |
Qty |
|
1 |
BD-D93-261A automatic closed flash point tester |
set |
1 |
|
2 |
Oil Cup |
ea |
1 |
|
3 |
Power cord (250V6A) |
ea |
1 |
|
4 |
printer paper |
roll |
1 |
|
5 |
Fire gun |
ea |
1 |
|
6 |
user's Guide |
pc |
1 |
|
7 |
Product certification |
pc |
1 |
|
8 |
warranty card |
pc |
1 |
