Pensky Martens Auto Closed Cup Flash Point Tester BD-D93-261D

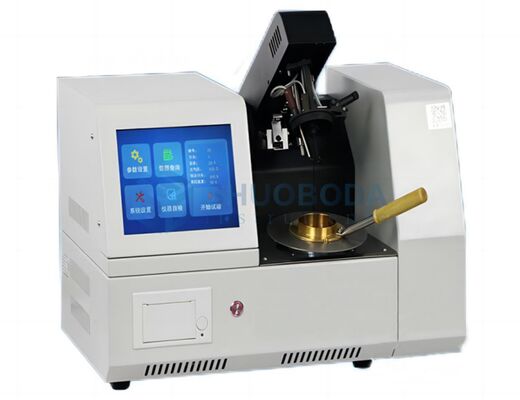

BD-D93-261D Penski-Martin automatic closed cup flash point tester

Product description:

BD-D93-261D Penski-Martin automatic closed cup flash point tester is designed and manufactured in accordance with the requirements stipulated in the People's Republic of China industry standard SH/T 0315 "Technical Conditions for Closed Flash Point Determiners". It is suitable for measuring the closed cup flash point of petroleum products according to the method specified in the People's Republic of China standard GB/T 261-2008 "Determination of flash point - Penski-Martin closed cup method".

Main Features:

1. It adopts a large color LCD screen display, a full English human-machine dialogue interface, and an unmarked keyboard. It has prompt menu-oriented input for parameters such as pre-value temperature, sample label, atmospheric pressure, and test date.

2. Simulation tracking displays the function curve of temperature rise and test time. It has a Chinese incorrect operation software prompt modification function and a parameter prompt function such as test date and test time.

3. Can store 100 sets of historical data.

4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

5. Differential detection and automatic correction of system deviations.

6. Opening the cover, ignition, detection, and printing data are completed automatically, and the test arm automatically rises and falls.

7. Humanized appearance design, beautiful, safe and easy to operate.

The biggest feature of this instrument is: the color display screen displays various setting parameters and test parameters, the entire test process is automatically completed, and the test results are automatically printed.

Main technical parameters and indicators

1. Working power supply: AC220 (-10%～+5%)V, 50Hz.

2.  Temperature measurement: Range: room temperature ~ 300°C.

                   Repeatability: ≤2℃;  Reproducibility: ≤4℃;

                   Temperature display unit: 0.1℃.

3.   Sample heating rate: Step A: (5~8)℃/min;

                   Step B: (1～1.5)℃/min;

                   Automatic control, manually adjustable.

4.   Stirring speed: (1) (90~120) rpm, suitable for test step A.

                  (2) (1～1.5)℃/min, applicable to test step B.

                   Automatic control, manual fine-tuning.

5.   Ignition method: gas flame (ignited by gas ignition method).

6.   Ambient temperature: (10~40)℃; relative humidity: ≤80%.

7.   The power consumption of the whole machine: not more than 500W.

8. Overall dimensions: (when the lifting arm is not raised) 410㎜×360㎜×310㎜ (length×width×height);

       (When the lifting arm is raised) 410㎜×360㎜×420㎜ (length×width×height).
