Automatic PMCC Flash Point Tester Pensky Martens Closed Cup Flash Point Apparatus
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Pensky Martens Closed Cup Flash Point Apparatus
,Automatic PMCC Flash Point Tester
,PMCC Flash Point Tester

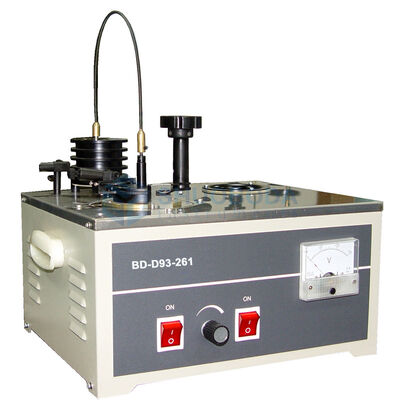

BD-D93-261 PMCC Pensky-Martens Flash Point Tester
Summary
BD-D93-261 PMCC Pensky-Martens Flash Point Tester is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens Closed Cup Method and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.
Main technical features
1. This instrument is designed as per GB/T261 and ASTM D93.
2. The heating power is continuously adjustable. The power is shown visually by voltmeter. The temperature control mode is advanced and reasonable.
3. The structure is designed small and exquisite. The stainless-steel table board is beautiful and easy to clean.
4. Operation is easy. Test results are precise. It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.
Main technical specifications
|
Model |
BD-D93-261 |
|
|
Power supply |
AC (220±10%)V, 50Hz. |
|
|
Heating device |
The heating power is continuously adjustable from 0 W to 600W. |
|
|
Heating rate |
(1 ~ 12)°C/min; Controllable and adjustable. |
|
|
Stirring rate |
Procedure A: (90 ~ 120)RPM Procedure B: (250±10)RPM |
|
|
Oil cup |
Inner diameter |
50.7mm ~ 50.8mm. |
|
Depth |
55.7mm ~ 56.0mm |
|
|
The scribed line depth of capacity of testing oil |
33.9mm ~ 34.3mm. |
|
|
Capacity of testing oil |
about 70ml |
|
|
Igniting device |
Igniting source |
gas (or other civilian fuels, the same below) |
|
Electric ignition. Gas flame diameter |
3.2mm ~ 4.8mm |
|
|
Thermometers |
Mercury-in-glass thermometer. Specifications are as below |
|
|
(1)Scale -5°C ~ 110°C, division 0.5°C |
||
|
(2)Scale 20°C ~ 150°C, division 1°C |
||
|
(3)Scale 90°C ~ 370°C, division 2°C |
||
|
Ambient temperature |
≤ 35°C |
|
|
Relative humidity |
≤ 85% |
|
|
Maximum power consumption |
650W |
|
|
Dimensions (m) |
0.42*0.35*0.35 |
|
Standard accessories
|
No. |
Item |
Unit |
Qty |
Remarks |
|
1 |
Thermometer -5 ~ 110 °C, each scale division is 0.5 °C |
Piece |
1 |
GB / T261-2008 Standard requirement |
|
2 |
Thermometer 20 ~ 150 °C, each scale division is 1.0 °C |
Piece |
1 |
|
|
3 |
Thermometer 90 ~ 370 °C, each scale division is 2 °C |
Piece |
1 |
|
|
4 |
Driving flexible shaft |
Piece |
1 |
|
|
5 |
Latex tube Ф3 250mm |
Piece |
3 |
One for alternate |
|
6 |
5A fuse (Ф5 × 20) |
Piece |
2 |
|
|
7 |
Thermometer adapter |
Set |
1 |
|
|
8 |
Thermometer liner (Cut suitable length of liner to wrap the lower end of the thermometer, so that the thermometer is just inserted into the thermometer adaptor) |
Piece |
5 |
|
