DT-12A Single Cylinder Powder Tap Density Tester Amplitude 3mm Bulk Density Tester

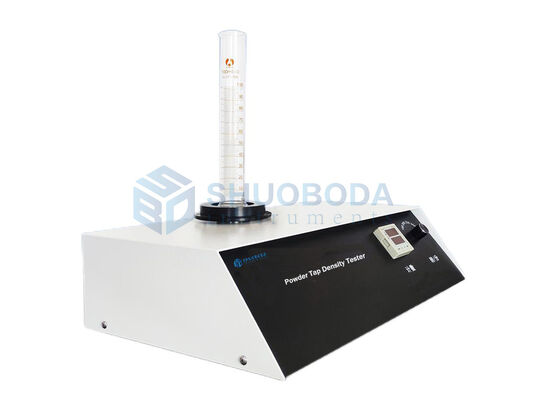

DT-12A Single-cylinder Powder Tap Density Tester, Amplitude 3mm

Product Introduction

Tap density is an important indicator of powder quality. The measurement of tap density is to put a certain amount of powder into a container and vibrate it under certain conditions until the volume of the powder in the container no longer decreases. The volume of the powder is read out, and the weight of the powder divided by the volume is the tap density of the powder.

DT-12A (single cylinder)/DT-12B (double cylinder)/DT-12C (three cylinder) series powder tap density tester is a new type of powder tap density instrument independently developed and manufactured by Shuoboda in accordance with the national standard GB/T 5162-2021 and in reference to the USP standard of the United States Pharmacopoeia, with independent intellectual property rights. The amplitude is 3mm, the number of tests is 0-9999 times, and the frequency is adjustable. The instrument consists of a microcomputer timer, an adjustable speed motor, a stainless steel guide workpiece, etc. The structure is firm and reasonable and easy to operate. The test data of the powder tap density and bulk density are managed by software. It is an ideal instrument for testing the tap density of various powders.

Application fields

Applicable to various powder tests in industrial and agricultural production, scientific research institutions and powder-related industries:

1. Various metal powders: such as aluminum powder, tin powder, zinc powder, molybdenum powder, nickel powder, tungsten powder, magnesium powder, copper powder, zirconium powder and other rare metal powders, alloy powders or metal oxide powders, etc.

2. Various non-metallic powders: such as talc, calcite, wollastonite, tourmaline, diamond, barite, fluorite, zeolite, boron carbide, clay, graphite, quartz, kaolin, calcium carbonate, coal powder, phosphor, brucite, diatomaceous earth, zirconium silicate, corundum, mica, clay, titanium dioxide, etc.

3. Other powders: such as soil, dyes, coatings, food additives, medicines, pesticides, abrasives, catalysts, cement, river sediment, etc.

Technical specifications

Advantages of the instrument

1. The vibration frequency can be adjusted as needed: 100 times/min, 200 times/min, 250 times/min, 300 times/min. The operation is simple and convenient. You only need to rotate the switch to set the vibration frequency.

2. The vibration frequency is adjustable from 0 to 9999 times, and the vibration frequency is set by the microcomputer timer.

3. The measuring cylinder and the fixed bracket can be disassembled to facilitate the cleaning, replacement and storage of the measuring cylinder.

4. The measuring cylinder vibrates up and down while rotating horizontally to keep the surface of the powder in the measuring cylinder flat, which effectively improves the measurement accuracy.

5. 3 models are available to meet various testing needs.

2. Randomly equipped with calculation software, which can calculate the loose density and tap density of the sample and generate an electronic report sheet, which can be printed and saved.
