Lab Automatic AAS Atomic Absorption Spectroscopy Absorption Spectrophotometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
AAS-4530F
Monochromator Type:
Czerny-Turner
Grating:
1800 Lines/mm
Grating Blaze Wavelength:
250nm
Wavelength Range:
190-900nm
Spectrum Bandwidth:
0.1nm/0.2nm/0.4nm/1.0nm/2.0nm Automatic Switching
Wavelength Accuracy:
±0.15nm
Highlight:
Lab atomic absorption spectrophotometer
,Automatic AAS spectroscopy analyzer
,Atomic absorption spectrometer with warranty
Product Description

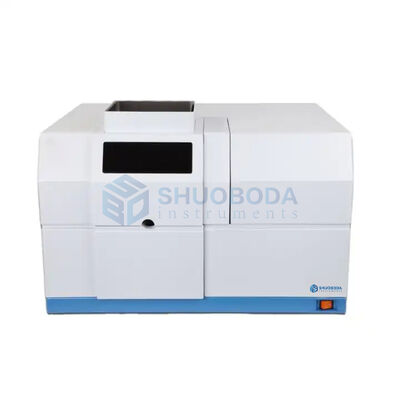

AAS-4530F Atomic Absorption Spectrophotometer
Laboratory automatic 8-light high accuracy double beam flame atomic absorption photometer for precise elemental analysis.
Key Features
- PC-controlled operation with flexible selection of flame and graphite furnace atomizers (optional)
- Integrated floated optical platform design for enhanced shock resistance and long-term signal stability
- Eight automatic light stands with simultaneous preheating and hollow cathode lamp optimization
- Automatic flame burner positioning for optimal height and front-rear alignment
- Fully automated wavelength scanning and peak searching capabilities
- Comprehensive safety protection systems for gas leaks, voltage issues, and flame abnormalities
- Deuterium lamp and self-absorption background correction
- Advanced data processing with 500+ data storage capacity and Excel export functionality
- Multiple measurement methods including flame absorption and emission techniques
- Comprehensive printing options for parameters, results, and diagrams
Complete Automated Control System
Software-enabled control for element lamp selection, lifter adjustment, optical energy calibration, slit selection, wavelength determination, atomizer choice, background correction, gas flow management, and automatic ignition systems.
Advanced Graphite Furnace Technology
- PID temperature control technology for precise heating despite voltage fluctuations
- 3ms fast sampling technique for accurate and reliable testing data
- Rapid heating capability for enhanced element analysis flexibility
- Standard 220V power operation without requiring 380V dynamic power
- 20-level programmable heating for diverse sample testing requirements
- Three-stage adjustable gas flow for versatile application needs
- Real-time gas and water monitoring with automatic alarms and protection
Safe and Reliable Flame System
Electronic Pressure Control (EPC) for precise acetylene flow management. High-efficiency atomization system delivers superior sensitivity. Comprehensive fire safety system with automatic gas shutoff and anti-flashback protection.
Multifunctional Software Workstation
Windows 7 compatible interface with intuitive menu navigation. Multiple analytical correction methods, beginner-friendly parameter settings, and flexible data storage, editing, and printing capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAS-4530F |
| Monochromator type | Czerny-Turner |
| Grating | 1800 lines/mm |
| Grating blaze wavelength | 250nm |
| Wavelength Range | 190-900nm |
| Spectrum Bandwidth | 0.1nm/0.2nm/0.4nm/1.0nm/2.0nm automatic switching |
| Wavelength Accuracy | ±0.15nm |
| Wavelength Receptivity | ≤0.04nm |
| Absorbance range | -0.1-2.000A |
| Baseline stability | ±0.005Abs/30min(Cu) |
| Characteristic viscosity | 0.02μg/ml/1% (Cu) |
| Detection limit | 0.004μg/ml (Cu) |
| Spectral bandwidth deviation | ≤0.2nm±0.02nm (bandwidth 0.2nm, Cu) |
| Measurement repeatability | ≤0.5% (flame method, Cu) |
| Lamp stand | 8 |
| Burner | Full metal titanium burner |
| Sprayer | High-efficiency glass atomizer |
| Spray chamber | Explosion-proof pre-mixed |
| Power supply | 220V±22V, 50Hz±1Hz, 200W |
| Host size | 700mm×550mm×530mm |
| Net weight | 80kg |
Flame System Specifications
| Parameter | Specification |
|---|---|
| Acetylene air burner | 100mm |
| Ignition dynamic baseline drift | ≤0.006Abs/30 min |
| Characteristic viscosity | 0.025μg/ml/1% |
| Related standard accuracy deviation | ≤0.5%(Cu, absorbance＞0.8A) |
| Detection limit | Cu ≤0.008μg/ml |
| Safety system | Automatic gas/power cutoff for pressure issues, flame out, and burner mismatch |
Graphite Furnace Specifications
| Parameter | Specification |
|---|---|
| Temperature upper limit | 3000℃ |
| Largest temperature rise speed | ≥2000℃/second |
| Characteristic quantity | Cd≤0.5×10⁻¹²g Cu≤0.5×10⁻¹¹g |
| Accuracy | Cu≤3% Cd≤3% |
| Safety system | Over current protection, low air pressure alarm/protection, low cooling water flow alarm/protection |
| Size and weight | 550mm×450mm×300mm, 65Kg |
Software Capabilities
- Compatible with Windows 7, XP, 2000, NT
- Instrument self-test functionality
- Password protection settings
- Comprehensive method establishment with instrument parameters, calibration curves, slope adjustments, and flame atomizer settings
Standard Accessories
- PC workstation
- HP inkjet printer
- Oil-free air compressor
- Acetylene reducing valve
- Cu Hollow cathode lamp
- Air filter
Optional Accessories
- Graphite furnace system
- Graphite furnace autosampler
- Cooling water circulation machine
- Hydride generator
- Hollow cathode lamps of various elements
