CRM-5 Confocal Raman Microscope CRM Raman Spectroscopy Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Confocal Raman Microscope
,Raman Microscope CRM
,CRM Raman Spectroscopy Machine

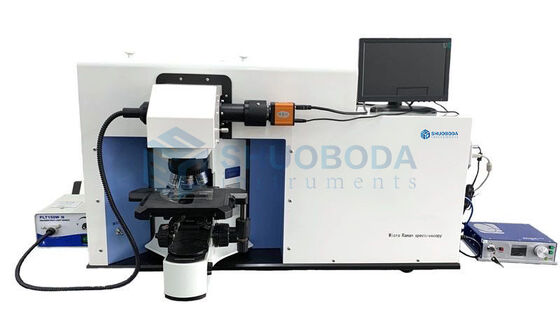

CRM-5 confocal Raman microscope (CRM)
Product description
The CRM-5 confocal Raman microscope is a research-level Raman testing instrument equipped with a three-dimensional automatic platform. The true confocal microscope optical path ensures that the most detailed spectral images can be obtained quickly and accurately.
The MRS-5 model has optimized the optical path design to ensure that it has the highest sensitivity on the market, taking into account the spatial resolution to reach the diffraction limit while ensuring the high light throughput of the instrument. Combined with the self-developed software operating system, the Raman testing process is more convenient, faster and more user-friendly.
Features
800mm focal length, high spatial and high spectral resolution
Fully automatic 3D platform enables fast automatic scanning of mapping
True confocal Raman imaging capabilities
Software controlled automatic variable pinhole
Open sample stage can meet the testing needs of samples of different shapes and volumes.
Ultra-low wave number detection
Scalable for use with a variety of other testing technologies
Wide range of applications
Low maintenance and simple to use
Function extension
Optional multi-laser, suitable for various types of samples and optimizing experimental results
Can be combined with Raman AFM and TERS (tip enhanced Raman)
Optional professional Raman database for rapid identification and analysis
Technical Specifications
|
Model |
CRM-5 |
|
measurement method |
Qualitative/semi-quantitative testing |
|
Laser (excitation wavelength) |
532nm (633nm, 785nm scalable) |
|
Spectral range |
50～7000cm-1 |
|
Spectral resolution |
Better than 1.5cm-1 |
|
Wavelength accuracy |
≤±1cm-1 |
|
Sensitivity |
The fourth-order peak of silicon can be observed |
|
spatial resolution |
X/Y axis: 0.01μm, Z-axis: 0.002μm (related to the microscope’s fine-tuning gear reduction ratio) |
|
CCD spectrum detector size |
26.6×3.2mm |
|
Effective Pixels |
1650×200 |
|
Pixel size |
16×16μm |
|
confocal pinhole |
50μm, 150μm, 200μm, 400μm |
