USP-752Pro Lab UV Visible Spectrophotometer 190nm - 1100nm 2nm±2.0 Nm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Lab UV Visible Spectrophotometer
,UV Visible Spectrophotometer 1100nm
,UV Visible Spectrometer 190nm

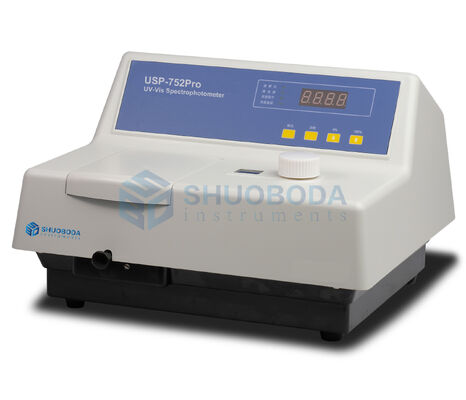

USP-752Pro UV-visible spectrophotometer
The UPS-752 series UV-Vis spectrophotometer is a simple and easy-to-use general-purpose instrument for spectrophotometry. It can perform direct reading measurement of transmittance, absorbance and concentration in the range of 190-1100nm, as well as concentration factor setting. The wavelength is manually adjusted, and the 2nm bandwidth can be adjusted.
It can meet almost all quantitative testing requirements, and can be widely used in medical and health, clinical testing, biochemistry, petrochemical, environmental monitoring, quality control and other departments for qualitative and quantitative analysis.
Features
The whole machine base and parts are made of aluminum alloy die-casting, and the quality and reliability of the instrument are guaranteed.
High-quality C-T grating monochromator, precision grating and aspherical mirror optical components, excellent optical performance.
Adopting the patented technology of combined light source, UPS-752S uses a deuterium lamp with high stability, high brightness and a working life of not less than 2000 hours imported from Hamamatsu, Japan. For deuterium lamps with a working life of less than 500 hours, UPS-752S and UPS-752Pro use UV receivers from Hamamatsu, Japan, which greatly improves the stability and reliability of the instrument.
Pre-calibrated light source and spectral energy correction system, which is convenient for users to replace and maintain the instrument.
Ultra-low stray light, excellent UV metering accuracy, the instrument has better cost performance.
The RS232 serial communication interface can be equipped with a special data processing software package to expand various data processing functions.
The quality of the instrument is stable. It is characterized by simple and reliable use and high cost performance. It has a high brand awareness and share in the market. It is widely used in medical and health, clinical testing, biochemistry, petrochemical, environmental monitoring, quality control, etc. Department for qualitative and quantitative analysis.
Specifications
|
Model |
USP-752Pro |
||
|
Optical system |
Diffraction grating C-T monochromator |
||
|
light source |
Deuterium lamp (500 hours life) + tungsten lamp |
||
|
Wavelength range |
190nm~1100nm |
||
|
Wavelength accuracy |
±2.0 nm |
||
|
Wavelength Repeatability |
≤0.5nm |
||
|
bandwidth |
2nm |
||
|
Transmittance accuracy |
±0.5%T |
||
|
Transmittance repeatability |
≤0.2%T |
||
|
stray light |
≤0.2%T |
||
|
Noise |
≤0.2%T (0% line), ≤0.5%T (100% line) |
||
|
Photometric range |
0.0~199.9(T),-0.3-2.999(A) |
||
|
Dimensions(mm) |
370mmX 320mmX 240mm |
||
|
weight |
7.5kg |
Standard Parts List:
1.USP-752S 1 set
2. Power cable 1 pc
3. Instruction manual 1 copy
4.Quality certificate of product 1copy
5.Fuses (2A) 2 pcs
6.1cm rectangular cuvette(glass) 2 boxes (4 pcs)
7.1cm rectangular cuvette(quartz)1 box(2 pcs)
8.1cm optical path cuvette rack(LG5.084.001)1 pair
9. Packing list 1 copy
Optional Accessories and Spare Parts:
1. Fuse(2A/3A)
2. Rectangular cuvette 1/2/3/5cm(glass), 1cm(quartz hermetical)
3. 5cmoptical path cuvette rack (LG5.084.005)
4. Data processing software package(set) (for personal computer)
5. RS-232C serial port cord
6. Optional serial printer
7. Praseodymium-neodymium optical filter
8. Holmium oxide optical filter
