USP-752S Ultraviolet Visible Spectrophotometer 190nm - 1100nm 2nm±2.0 nm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Ultraviolet Visible Spectrophotometer 190nm
,Ultraviolet Visible Spectrophotometer 1100nm

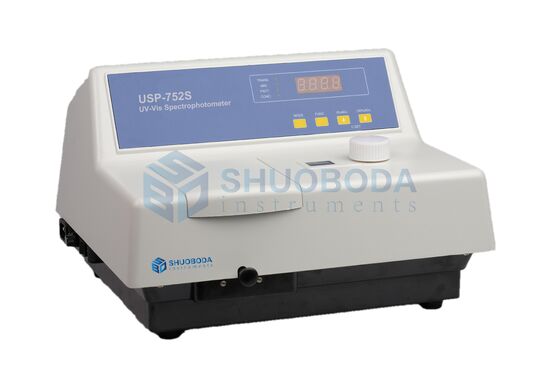

USP-752S UV-Vis Spectrophotometer
Function
USP-752S UV-Visible spectrophotometer is a concise easy-operated general use spectrophotometric instrument, it can measure transmittance, absorbance and direct reading within the wavelengths of 190nm~1100nm, Wavelength regulated by button, the 2nm bandwidth can satisfy almost all metered tests request, adopt the Japanese Hamamatsu original L2D2 long life, high brightness, high stable Lamp Combination& technology can reduce the maintenance and lower the customer usage cost.
This instrument is widely used in medical science and hygiene, clinical analysis, biochemistry, petroleum chemical industry, environmental monitoring and quality control department for qualitative and quantitative analyses
Features
1． Optical system: Diffraction grating C-T monochromator；
2． Light source: the series of L2D2 of Japanese Hamamatsu original L2D2 long life (above 3000 hours), high brightness, high stable deuterium lamp and long life (above 10000 hours)tungsten lamp; high stable & credibility of light source with patent technical Combination；
3． Receiver: Hamamatsu1226 UVR receiver
4． 4RS-232C serial port interface attached,Optional serial printer；Data processing software& Optional serial printer are attached；
5． Wavelength regulated by button；Concentration factor setting and direct read-out ability；
6． Auto-zero and auto-100%(τ)adjustment；
7． Large sample compartment,4-positions sample cuvette rack,optional 5cm optical length rectangular cuvettes.
Specifications
|
Model |
USP-752S |
|
Optical system |
Japanese Hamamatsu gas lamp (2000 hours life) + tungsten lamp |
|
Wavelength range |
190nm~1100nm |
|
Wavelength accuracy |
±2.0 nm |
|
Wavelength Repeatability |
≤0.5nm |
|
bandwidth |
2nm |
|
Transmittance accuracy |
±0.5%T |
|
Transmittance repeatability |
≤0.2%T |
|
stray light |
≤0.2%T |
|
Photometric range |
0.0~199.9(T),-0.3-2.999(A) |
|
Dimensions(mm) |
370mmX 320mmX 240mm |
|
weight |
7.5kg |
Standard Parts List:
1.USP-752S 1 set
2. Power cable 1 pc
3. Instruction manual 1 copy
4.Quality certificate of product 1copy
5.Fuses (2A) 2 pcs
6.1cm rectangular cuvette(glass) 2 boxes (4 pcs)
7.1cm rectangular cuvette(quartz)1 box(2 pcs)
8.1cm optical path cuvette rack(LG5.084.001)1 pair
9. Packing list 1 copy
Optional Accessories and Spare Parts:
1. Fuse(2A/3A)
2. Rectangular cuvette 1/2/3/5cm(glass), 1cm(quartz hermetical)
3. 5cmoptical path cuvette rack (LG5.084.005)
4. Data processing software package(set) (for personal computer)
5. RS-232C serial port cord
6. Optional serial printer
7. Praseodymium-neodymium optical filter
8. Holmium oxide optical filter
