Automatic Scanning UV Visible Spectroscopy Single Beam 190nm - 1100nm ±0.5nm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Automatic Scanning UV VIS Spectrophotometer
,Scanning UV VIS Spectrophotometer 1100nm
,UV Visible Spectroscopy Single Beam 190nm

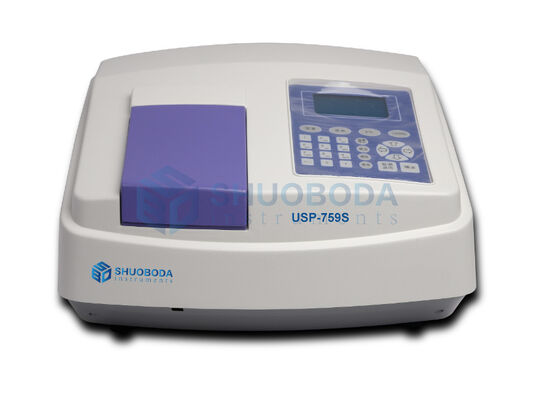

USP-759S UV-Visible Spectrophotometer
The UV-visible spectrophotometer is a single-beam, wavelength-automatic scanning UV-visible spectrophotometer product developed by SHUOBODA. It has the characteristics of exquisite structure, high-cost performance, rich and convenient instrument functions.
Features:
1. Long-life Light Source: dramatically reduce the cost of light source replacement and the frequency of maintenance.
2. Low Stray Light: ensure the stray light lower than 0.05% to meet clients' need when they want to test high absorbance sample.
3. High Wavelength Accuracy: ensure the accuracy and long-term stability.
4. Wide Wavelength Range: meet the needs of most spectrophotometric test.
5. High-speed Scanning: help user to capture the instantaneous spectrum change of sample and improve the work efficiency.
6. Auto-matching Function of Cuvettes: decrease the deviation occurred by the difference of cuvettes when process quantity measurement.
7. High Photometric Accuracy: ensure that the measurement of optical light path to meet the design requirements, improve process efficiency of the Assembly to achieve high precision photometry testing index.
8. Offline U disk storage: make it easy for user to manage data in the format like Excel and etc.
9. USB ports: User needn't set any parameter to enable online communication while the RS232 serial port have to set it.
10. Various offline quantitative measurement function: Electronic System use 32 bits ARM core processor system, equipped with 128*64 big screen LCD, offline quantitative measurement could do multi wavelength test, Standard curve fitting and measurement, standard coefficient equation input, save and load standard equation, data storage and printing, quantitative measurement of concentration.
11. Powerful Software Function: Software could achieve spectrum scanning, time scanning, dynamic scanning, quantitative measurement, multi wavelength analysis and formula calculation, spectrum processing, find peak and valley, print data, DNA/RNA test, instrument calibration, performance verification and etc. to meet different needs in various analysis fields.
Specifications:
|
Model |
USP-756S |
USP-759S |
|
|
Optical system: |
Diffraction grating C-T monochromator |
Diffraction grating C-T monochromator |
|
|
Light source: |
Deuterium lamp (500 hours), tungsten lamp |
Japan's Hamamatsu long-life and highly stable deuterium lamp (2000 hours), long-life tungsten lamp |
|
|
Wavelength Range |
190nm~1100nm |
||
|
Wavelength Accuracy |
±0.5nm |
||
|
Wavelength Repeatability |
≤0.2nm |
||
|
Bandwidth |
2nm |
||
|
Photometry Accuracy |
±0.5%T |
±0.3%T |
|
|
Photometry Repeatability |
≤0.2%T |
≤0.15%T |
|
|
Stray Light |
≤0.1%T(220nm, NaI) |
≤0.05%T(220nm, NaI) |
|
|
Baseline Flatness |
±0.002A |
||
|
Stability |
≤0.0008A |
||
|
Noise |
≤0.3%T(100%T), ≤0.1%T(0%T) |
||
|
Photometry Range |
0.0~200%(T),-0.3~4(A) |
||
|
Display System |
128*64 LCD Display |
||
|
Functional Port |
USB-A(U Disk), USB-B(PC), Serial Port(Printer) |
||
|
Instrument Dimension |
370mm×357mm×220mm |
370mm×440mm×220mm |
|
|
Weight |
N.W.: 9KG; G.W.: 10KG |
||
Standard configuration:
|
Main instrument |
1 |
|
Power cable |
1 |
|
User’s manual |
1 |
|
Certification |
1 |
|
Fuse(2A) |
2 |
|
1cm Rectangle sample cell (Quartz) |
2 |
|
1cm Rectangle sample cell (Glass) |
4 |
|
1cm Sample cell holder (in the instrument) |
1 |
|
Warranty card |
1 |
|
USB flash drive |
1 |
|
Software (Only for PC version) |
1 |
|
USB cable ( Only for PC version) |
1 |
Optional items:
|
Optional accessory items |
Specification |
|
Rectangular cuvette (glass) |
1cm, 2cm, 3cm, 5cm |
|
Rectangular Colorimetric Blood (Quartz) |
1cm, 2cm, 3cm, 5cm |
|
5cm light diameter colorimetric blood stand |
|
