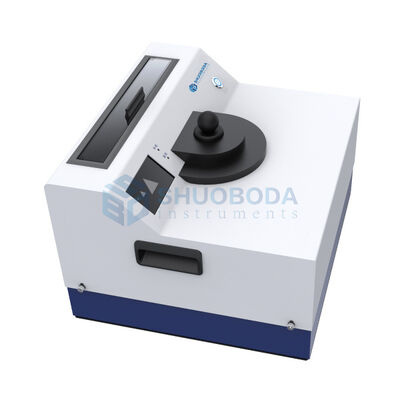

LSC1000 Portable Multifunctional Liquid Scintillation Spectrometer
Product Description
LSC1000 Multifunctional Liquid Scintillation Spectrometer is a portable, multifunctional liquid scintillation spectrometer for measuring the radioactivity of alpha and beta emitters, based on the technology of LSC3000 Ultra-Low Level Liquid Scintillation Spectrometer, filling a domestic gap. The device is small in size and light in weight, and can be used for vehicle or field detection, it's an ideal tool for rapid liquid scintillation measurement and analysis.
Functional features
Ÿ Tri-omni spectrometer for rapid measurement of common nuclides, with optional BGO probe for y-ray detection
Ÿ Small and easy to move, for outdoor and vehicle measurements
Ÿ Alpha and beta nuclear emergency wipe tests available, providing fast and accurate results for routine wipes
Ÿ Using 3+3 coincidence and anticoincidence detection techniques and TDCR quench correction technique
Ÿ Reserved storage space for a small number of sample bottles
Ÿ Relative and absolute measurements coexist and can be scaled without a standard source
Ÿ Direct measurement of energetic beta nuclide activity using the Cherenkov technique
Ÿ Programmable for unattended measurements, multiple tasks can be set at a time
Ÿ Database of 70 nuclides, pre-programmed for a wide range of experimental applications, expandable on request
Application areas
Ÿ Mobile laboratory
Ÿ Expedition, homel and security
Ÿ Radiation safety, environmental testing
Ÿ Nuclear emergency response
Technical specifications
|
LSC1000 Portable Multifunctional Liquid Scintillation Spectrometer |
|
|
Analysis mode |
Energy spectrum model |
|
Measurement mode |
Continuous, repetitive, timed, constant accuracy |
|
Number of samples |
1 |
|
Sample feeding method |
Manual sample feeding |
|
Sample containers |
20mI standard bottle |
|
Multi-channel analyzer |
2048 channels |
|
Energy range |
α: 3 to 10 MeV; β: 0 to 5 MeV |
|
Background |
β:<200 cpm(3H) ;< 150 cpm(14C) |
|
Detection efficiency |
3H: ≥55%;14C: ≥ 90% |
|
Energy resolution |
0.01keV/ch(3H) |
|
Power supply method |
DC 12V, rechargeable lithium battery |
|
Power |
<40W |
|
Communication methods |
AC 220V+10%,50Hz+10% |
|
Display method |
4.3" touchscreen and 14" laptop with simultaneous dual display |
|
Machine size |
311H x 457W x 403D(mm) |
|
Weight |
Approx.28kg |
|
Operating temperature |
5°C to 35°C |
|
Operating humidity |
30%to 80% (25°C, no frosting) |
