Lab Ultra Low Background Liquid Scintillation Spectrometer Liquid Scintillation Analyzer

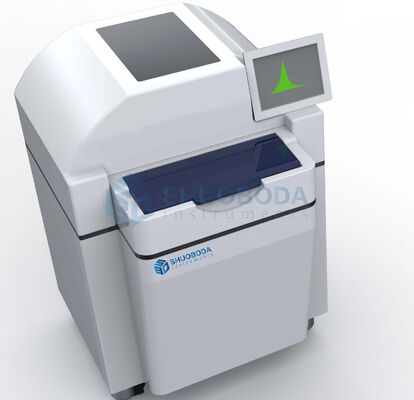

LSC3000 Ultra Low Background Liquid Scintillation Spectrometer

Product introduction

• LSC3000 ultra-low background liquid scintillation spectrometer is a liquid scintillation analyzer independently developed for the determination of ultra-low-level α and β-emitter radioactivity. Its technical performance and index parameters rank among the international advanced ultra-low levels The ranks of liquid scintillation spectrometers have filled the domestic blank.

• LSC3000 ultra-low background liquid scintillation spectrometer is an essential equipment for low-level radioactivity measurement laboratories, mainly used for extremely low levels of 3H, 14C in environmental samples (such as water, air, soil, animals, plants, etc.) It can also be used for the measurement of other α nuclides and β nuclides, and is widely used in nuclear power plants, nuclear energy facilities, environmental protection, education, scientific research, hydrogeology, food science, archaeological dating, and ocean expeditions.

Features

• Using TDCR quenching correction technology

• Using dual multi-channel analysis technology, providing a unique measurement and analysis program for α and β in water

• Direct measurement of high energy beta nuclide activity using Cherenkov radiation technique

• Absolute measurement technology combined with efficiency tracking technology for dual label separation

• Coexistence of relative and absolute measurements, eliminating the need for standard source calibration

• Ergonomic touch screen display, dual display operation

• Provides optional functions for logarithmic and linear spectra

• Program control to complete unattended measurement, multiple tasks can be set each time

• 70 kinds of nuclide databases, rich preset experimental application schemes, which can be expanded according to customer requirements

Technical parameters

• Analysis mode: counting mode and spectrum mode

• Measurement modes: continuous, repeat, timed, fixed precision

• Sample quantity: 30

• Sample feeding method: automatic convey or belt

• Sample container: 20ml standard bottle

• Figure of Merit: (EV)2/B ＞ 50000 (measured in 20ml PFA bottle for 3H water sample)

• Multi-channel analyzer: 2 x 2048 or 4096

• Temperature control device: built-in system

• Energy range: α: 3 ~ 10MeV; β: 1 ~ 5000keV

• Background: background is less than 1cpm (20ml contains 40% water, 3H efficiency is greater than 28%)

Background less than 0.8cpm (5ml14C sample, 14C efficiency greater than 70%)

• Detection efficiency: 3H: ≥ 65%, 14C: ≥ 95%

• Lower detection limit: 1.0Bq/L (measured with 12ml scintillation fluid + 8ml tritium water sample for 1000min)

• 24h stability: counts change less than 0.2%/24h

• Energy resolution: 0.01keV/ch(3H)

• Extended capabilities: α, β separation technology

• Display mode: 12" color touch screen and 19" wide screen, dual screen simultaneous display

• Machine size: 1330H×930W×912D(mm)

• Weight: ≤ 900kg

• Working humidity: 30% ~ 80% (25°C, no frost)

• Working temperature: 5°C ~ 35°C
