Low Level Liquid Scintillation Spectrometer Vehicle Mounted Radioactivity Measurement Equipment
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per year |
Liquid Scintillation Spectrometer Vehicle Mounted
,Radioactivity Liquid Scintillation Spectrometer
,Vehicle Mounted Radioactivity Measurement Equipment

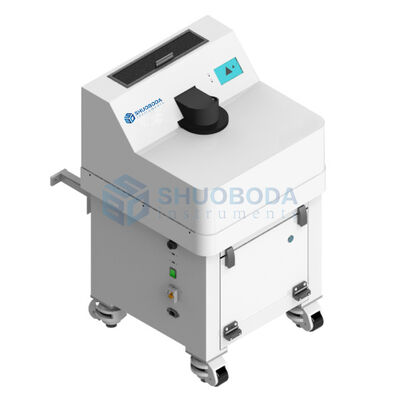

LSC3000B Low Level Liquid Scintillation Spectrometer (vehicle-mounted)
Product Description
LSC3000B Low Level Liquid Scintillation Spectrometer (vehicle-mounted) is a vehicle mounted low background radioactivity measurement equipment developed by SHUOBODA based on the technology of LSC3000 Ultra-Low Level Liquid Scintillation Spectrometer, which is suitable for use in vehicles and ships to meet the needs of rea-time measurement in the field.
Functional features
1．Tri-omni spectrometer for rapid measurement of common nuclides, with optional BGO probe for y-ray detection
2．Small in size and easy to move for vehicle mounted measurements
3．Alpha and beta nuclear emergency wipe tests available, providing fast and accurate results for routine wipes
4．Using 3+3 coincidence and anticoincidence detection techniques and TDCR quench correction technique
5．Reserved storage space for a small number of sample bottles
6．Relative and absolute measurements coexist and can be scaled without a standard source
7．Logarithmic and linear spectrograms are available
8．Direct measurement of energetic beta nuclide activity using the Cherenkov technique
9．Database of 70 nuclides, pre-programmed for a wide range of experimental applications, expandable on request
10．Programmable for unattended measurements, multiple tasks can be set at a time
Application areas
1．Mobile laboratory
2．Expedition, homeland security
3．Radiation safety, environmental testing
4．Nuclear emergency response
Technical specifications
|
LSC3000B Low Level Liquid Scintillation Spectrometer |
|
|
Measurement mode |
Continuous, repetitive, timed, constant accuracy |
|
Number of samples |
1 |
|
Sample feeding method |
Manual sample feeding |
|
Sample containers |
20mI standard bottle |
|
Multi-channel analyser |
2 x 2048 channels |
|
Temperature control devices |
System built-in |
|
Energy range |
a: 3 to 10 MeV; β: 0 to 5 MeV |
|
Background |
Background less than 2.0 cpm (20 ml containing 40% water, 3H efficiency > 28%). 3H (0~18.6keV) < 20 cpm;14C(0~156keV) <25 cpm |
|
Detection efficiency |
3H: ≥ 60%, 14C: ≥95%. |
|
Lower detection limit |
1.5Bq/L(12 ml scintillation solution + 8 ml tritium water sample measured for 1000min) |
|
24h instability |
Count change less than 0.2%/24h |
|
Energy resolution |
0.01keV/ch(3H) |
|
Power supply method |
AC 220V+10%,50HZ+10% |
|
Power |
<200W |
|
Communication methods |
USB, RJ45 |
|
Display method |
4.3" touchscreen and 14" laptop with simultaneous dual display |
|
Machine size |
907Hx545Wx798D(mm) |
|
Weight |
Approx.400kg |
|
Operating temperature |
5°C to 35° |
|
Operation humidity |
30% to 80%(25C, no frosting) |
