RS100 Handheld Raman spectrometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
RS100
Excitation Wavelength:
785nm
Spectral Range:
200- 3200cm-1
Resolution:
6-8cm-1
Dimensions:
215*88*34mm
Weight:
700g
Laser Power:
0–500 MW Adjustable
Product Description

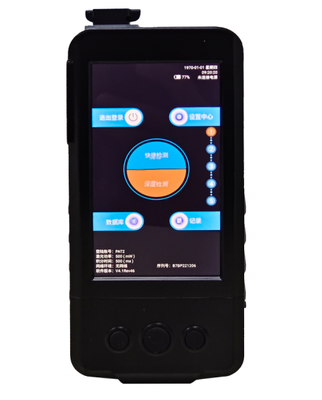

RS100 Handheld Raman Spectrometer
Product Overview
The RS-100 handheld Raman spectrometer utilizes laser Raman spectroscopy to enable rapid, non-destructive testing without sample pretreatment, requiring only minimal material. Featuring a compact, portable design with integrated optical path and intuitive user interface, this lightweight device is ideal for flexible on-site inspections with test reports viewable directly on the built-in display.
Leading the market in performance and ease of use, the RS-100 offers exceptional standby times and comprehensive cloud platform support for handheld material identification.
Applications
- Enforcement and customs inspections
- Raw material verification in pharmaceutical manufacturing
- Security screening at large-scale events
- Hazardous material checks at subway entrances
- Border control and customs operations
Instrument Features
- Replaceable battery for safe, reliable, and continuous operation
- Damping probe design with continuously adjustable focal length—no need to change caps
- Cloud platform support with cloud-based database and bidirectional encryption for security and stability
- Quick-connect accessory mount, retractable probe, and combination touchscreen/physical buttons for rapid accessory switching
- Mixture identification capability—simultaneously analyzes up to five mixed components with calculation time <10 seconds and false alarm rate <3%
- High-fluorescence material identification using high-sensitivity hardware and advanced algorithms to extract material signals masked by fluorescence
Technical Specifications
| Parameter | 785nm | 830nm | 1064nm |
|---|---|---|---|
| Spectral Range | 200-3200cm⁻¹ | 200-3200cm⁻¹ | 200-2500cm⁻¹ |
| Resolution | 6-8cm⁻¹ | 6-8cm⁻¹ | 8-10cm⁻¹ |
| Dimensions | 215×88×34mm (including probe) | 215×88×34mm (including probe) | 197×90×45mm |
| Weight | 700g | 700g | 800g |
Additional Specifications
- Laser Power: 0-500 mW adjustable with fluorescence suppression
- Spot Size: 200 µm
- Working Distance: 0-7.5 mm continuously adjustable
- Operating Temperature: -20 to 60°C
- Data Connection: WiFi, 4G, SIM card support
- Sample Volume: 1 µL or more
- Battery Life: >12 hours (optional)
- Laser Lifespan: 10,000 hours
- Database: >1,000 compounds
- Imaging: Supported; 13 megapixels
- Display: 6.5-inch AMOLED capacitive screen
- Software Features: Model matching, report generation, record uploading, etc.
