MRS-4 Micro Raman Spectrometer 200nm - 800nm Raman Spectroscopy Machine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Micro Raman Spectrometer
,Raman Spectrometer 200nm
,Micro Raman Spectroscopy Machine

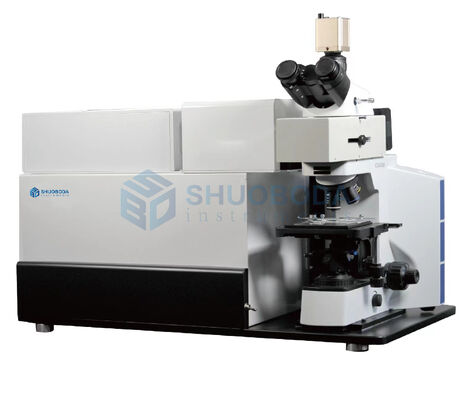

MRS-4 Micro-Raman spectrometer
Product description
MRS-4S is a general-purpose microscopic confocal Raman spectrometer. Based on the modular design concept and advanced optical system, it achieves high performance and high-cost performance. It is suitable for university teaching, basic scientific research, enterprise testing and R&D., environmental protection and other fields
Features
Visual operation control, intuitive and simple
Sample size up to 2μm
Low wavenumber detection down to 20cm-1 is possible
Different detection methods of wavelength/wave number can be selected
Detectable polarization properties of Raman spectra
|
Model |
MRS-4 |
|
Monochromator |
|
|
Focal length |
300mm |
|
Grating |
1200 pieces/mm |
|
Wavelength range |
200~800nm |
|
slit |
0~2mm continuously adjustable |
|
Wavelength accuracy |
≤0.2nm |
|
Repeatability |
≤0.2nm |
|
Laser |
|
|
excitation wavelength |
532nm |
|
Output Power |
100mW |
|
Microscope optical system |
|
|
Infinity chromatic aberration correction system, minimum measurement diameter 2μm |
|
|
eyepiece
|
High eye point and large field of view plan eyepiece PL10x/22mm |
|
Micrometer available |
|
|
objective lens |
Infinity plan semi-apochromatic fluorescence objective (10x, 50x, 100x) |
|
converter |
Internally positioned five-hole converter |
|
Focusing mechanism
|
Low hand position coarse and fine adjustment coaxial |
|
Coarse adjustment stroke 30mm |
|
|
Fine adjustment accuracy 0.002mm |
|
|
Tightness adjustment device and upper limit device |
|
|
Stage bracket set height adjustable |
|
|
Stage
|
150mm x 162mm double-layer composite mechanical platform |
|
Movement range 76mm x 50mm |
|
|
Accuracy 0.1mm |
|
|
X-axis single linear rail transmission |
|
|
Upper platform ceramic spray paint |
|
|
Lighting system
|
Adaptive 100V~240V wide voltage |
|
Reflector light room |
|
|
Single high-power 5W high-brightness LED light |
|
|
Kohler Lighting |
|
|
Reservation center |
|
|
Light intensity continuously adjustable |
|
|
Camera |
Ultra HD 16 million pixels |
