BD-D1401-7305A Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-7305A
Temperature Control Range:
Adjustable From Room Temperature To 110℃
Temperature Control Accuracy:
±0.02℃
Stirring Speed:
(1500±15)r/min
Stirring Time:
(0~99) Minutes, Adjustable At Will
Maximum Power:
1500W
Working Power Supply:
AC (220±10%)V, (50±10%)Hz
Highlight:
Synthetic Fluids Demulsibility Tester
,7305A Demulsibility Characteristics Tester
,Petroleum Oils Demulsibility Tester
Product Description

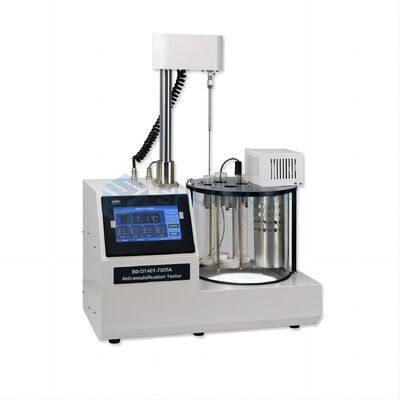

BD-D1401-7305A Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester
Product Overview
The BD-D1401-7305A Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester is designed and manufactured in accordance with National Standard GB/T7305-87 "Test Methods for Demulsibility Characteristics of Petroleum Oils and Synthetic Fluids", GB/T7605-87 "Test Methods for Demulsibility Characteristics of Oils in Service" and ASTM D 1401. This instrument is specifically designed to determine the ability of petroleum oils and synthetic fluids to separate from water.
Main Technical Features
- Compact bath and desktop design for easy operation and aesthetic appearance
- Automatic electric motor stirring with precise and uniform temperature control
- Capable of testing 3 samples simultaneously
- Convenient lifting stirring device with excellent concentricity between stirring paddle and cylinders
- Vibration-free operation without cylinder wall contact
- LCD screen with scrolling graphical display for real-time, intuitive test information
- User-friendly interface with menu-style input for easy operation
Technical Parameters
- Temperature control range: Adjustable from room temperature to 110℃
- Temperature control accuracy: ±0.02℃
- Stirring speed: (1500±15)r/min
- Stirring time: (0~99) minutes, adjustable
- Timing time: (0~99) hours
- Number of test holes: 4
- Working power supply: AC (220±10%)V, (50±10%)Hz
- Maximum power: 1500W
- Usage environment: temperature (5~40)℃, relative humidity <85%
Standard Accessories and Documents
| No. | Name | Unit | Quantity | Memo |
|---|---|---|---|---|
| 1 | BD-D1401-7305A Automatic Demulsibility Characteristics Tester | Set | 1 | |
| 2 | Stirring vane | Piece | 1 | |
| 3 | Measuring cylinder (100ml) | Piece | 3 | |
| 4 | Power line (250V6A) | Piece | 1 | |
| 5 | Operation Manual | Piece | 1 | |
| 6 | Quality Certificate | Piece | 1 | |
| 7 | Repair Guarantee | Piece | 1 |
Required Reagents and Auxiliary Equipment
| No. | Name | Specification | Quantity | Memo |
|---|---|---|---|---|
| 1 | Petroleum ether 60-90℃ | Analytical pure 500ml | 2 bottles | |
| 2 | Absolute ethyl alcohol | Analytical pure 500ml | 1 bottle | |
| 3 | Degreasing cotton | 1 roll | ||
| 4 | Bamboo tweezers | 2 pieces | ||
| 5 | Distilled water | 2 grade 500ml | 1 bottle | |
| 6 | Litmus paper | 1 box | ||
| 7 | Chromic acid lotion | 500ml | 1 bottle |
Important Notes
1. The reagent and equipment for installing the instrument are supplied by end-users themselves.
2. The usage, management and storage of poisonous and harmful reagents should be operated according to the relative principles.
Please read the operation manual and industry standard before using the instrument.
