BD-D1401-7305 Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D1401-7305
Power Supply:
AC 220V±10%, 50Hz
Temperature Control Range:
Room Temperature To 99.9°C
Temperature Control Accuracy:
±1°C
Temperature Resolution:
0.1°C
Total Power Consumption:
≤800W
Dimensions:
0.52 × 0.46 × 1.22 Meters
Highlight:
Synthetic Fluids Demulsibility Tester
,Demulsibility Characteristics Tester
,Oils Demulsibility Characteristics Tester
Product Description

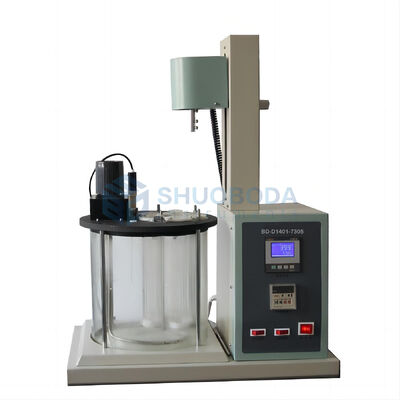

BD-D1401-7305 Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester
Product Overview
BD-D1401-7305 Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester is designed and manufactured in accordance with National Standard GB/T7305 "Test Methods for Demulsibility Characteristics of Petroleum Oils and Synthetic Fluids" and ASTM D 1401. This instrument is suitable for determining the ability of petroleum oils and synthetic fluids to separate from water.
Key Features
- Compact bath design with desktop structure for easy operation and aesthetic appearance
- Automatic stirring via electric motor ensures uniform temperature distribution
- Capable of testing 5 samples sequentially
- Convenient lifting mechanism for stirring device with excellent concentricity
- Stable operation without vibration or contact with cylinder walls
Technical Specifications
- Power Supply: AC 220V±10%, 50Hz
- Temperature Control Range: Room temperature to 99.9°C
- Temperature Control Accuracy: ±1°C
- Temperature Resolution: 0.1°C
- Temperature Display: Digital
- Timing Range: 1 second to 9 minutes 59 seconds
- Time Setting: Dial control
- Time Display: Digital
- Stirring Speed: 1500±15 RPM
- Heating Power: 600W
- Ambient Temperature: Room temperature to 35°C
- Relative Humidity: ≤85%
- Total Power Consumption: ≤800W
- Dimensions: 0.52 * 0.46 * 1.22 meters
Standard Accessories
| No. | Name | Unit | Quantity | Notes |
|---|---|---|---|---|
| 1 | BD-D1401-7305 Demulsibility Characteristics Tester (Desktop structure) | Set | 1 | |
| 2 | Stirring Vane | Piece | 1 | |
| 3 | Sample Cylinder | Piece | 6 | Includes one spare |
| 4 | Thermometer (0℃-100℃, 1℃ division) | Piece | 1 | |
| 5 | Temperature Sensor (200mm length) | Piece | 1 | Pre-installed |
| 6 | Temperature Sensor Sheath | Piece | 1 | Pre-installed |
| 7 | Thermometer Stopping Ring (1#) | Piece | 6 | |
| 8 | Fuse 10A(Ф5*20) | Piece | 2 | |
| 9 | Operation Manual | Piece | 1 | |
| 10 | Quality Certificate | Piece | 1 | |
| 11 | Repair Guarantee | Piece | 1 | |
| 12 | Temperature Control Device Manual | Piece | 1 |
Required Reagents & Auxiliary Equipment
| No. | Name | Specification | Quantity | Notes |
|---|---|---|---|---|
| 1 | Petroleum Ether 60-90℃ | Analytical Pure 500ml | 2 bottles | |
| 2 | Absolute Ethyl Alcohol | Analytical Pure 500ml | 1 bottle | |
| 3 | Degreasing Cotton | 1 roll | ||
| 4 | Bamboo Tweezers | 2 pieces | ||
| 5 | Distilled Water | 2 Grade 500ml | 1 bottle | |
| 6 | Litmus Paper | 1 box | ||
| 7 | Chromic Acid Lotions | 500ml | 1 bottle |
Important Notes
- Reagents and equipment for instrument installation are to be supplied by end-users
- Handle, manage, and store toxic and harmful reagents according to relevant safety principles
- Please read the operation manual and industry standards before using the instrument
