BD-D665-5096 Rust Characteristics and Corrosion Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D665-5096
Power Supply:
AC (220±10%) V, 50Hz
Temperature Sensor:
Pt100
Temperature Range:
0 ~ 100°C, Set At Will.
Temperature Control Accuracy:
±1°C
Time Display:
LED
Maximum Power Consumption:
1800 W
Highlight:
Corrosion Tester BD-D665-5096
,Rust Tester BD-D665-5096
Product Description

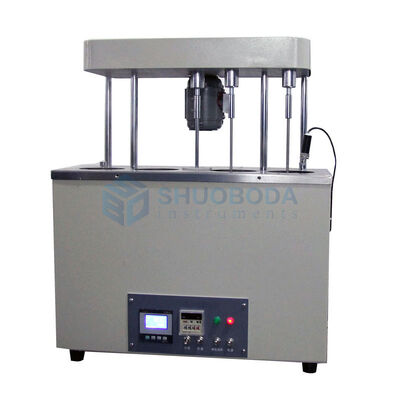

BD-D665-5096 Rust Characteristics and Corrosion Tester
The BD-D665-5096 Rust Characteristics and Corrosion Tester is manufactured in accordance with standards ASTM D130 and ASTM D665. This multifunctional tester is designed for determining the corrosion and rust-preventing characteristics of petroleum products.
Key Features
- Multifunctional tester with excellent performance-to-cost ratio
- Features LCD temperature controller, heater, and electric stirrer for uniform temperature distribution in the constant bath
- Temperature controller includes timing function for automatic test time control
- Equipped with imported standard color board from USA to meet test method requirements
Technical Specifications
- Power supply: AC (220±10%) V, 50Hz
- Temperature sensor: Pt100
- Temperature range: (0 ~ 100)°C, adjustable
- Temperature control accuracy: ±1°C
- Temperature display: LED
- Temperature control heating power: 600W
- Auxiliary heating power: 1000W
- Time control range: 1 minute ~ 24 hours, adjustable
- Time display: LED
- Sample testing positions: Four positions
- Ambient temperature: Room temperature ~ 35°C
- Relative humidity: ≤ 85%
- Maximum power consumption: 1800W
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Thermostatic bath cover | Piece | 2 | |
| 2 | Test bomb bracket | Piece | 2 | |
| 3 | Test tube bracket | Piece | 2 | |
| 4 | Beaker bracket | Piece | 2 | |
| 5 | Silver strip corrosion test tube bracket | Piece | 2 | |
| 6 | Glass Bracket | Piece | 2 | |
| 7 | Oil sample stirring rod | Piece | 2 | |
| 8 | Test rod holder | Piece | 2 | |
| 9 | Test bar | Piece | 2 | |
| 10 | Beaker cover | Piece | 2 | |
| 11 | Test bomb | Piece | 2 | |
| 12 | Specimen | Piece | 6 | |
| 13 | Observation tube | Piece | 3 | |
| 14 | Test tube | Piece | 6 | |
| 15 | Silver Strip Corrosion condenser | Piece | 2 | |
| 16 | Thermometer 0°C ~ 100°C, scale division 1°C | Piece | 1 | |
| 17 | Standard color board | Piece | 1 | |
| 18 | Grinding device | Piece | 1 | |
| 19 | 10 A fuse (Φ5×20) | Piece | 2 | |
| 20 | Temperature sensor | Piece | 1 | |
| 21 | Silver strip corrosion test tube | Piece | 2 | |
| 22 | "O" type ring (Φ40mm×3.5mm, Φ42mm×3.5mm) | Piece | 3 for each | |
| 23 | Beaker | Piece | 2 | |
| 24 | Stopping ring for thermometer (1 #) | Piece | 4 |
