BD-D665-11143 Lubricating Oil Rust Characteristics Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D665-11143
Power Supply:
AC (220±10%) V, 50Hz
Temperature Range:
0°C ~ 100°C
Temperature Control Accuracy:
±1°C
Temperature Sensor:
RTD, Pt100
Maximum Power Consumption:
1800W
Dimension:
580mm×320mm×600mm
Highlight:
11143 Lubricating Oil Rust Characteristics Tester
,Lubricating Oil Rust Characteristics Tester
Product Description

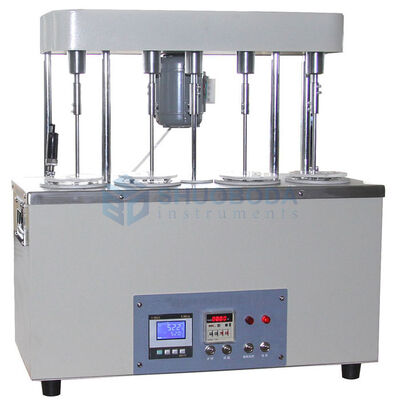

BD-D665-11143 Lubricating Oil Rust Characteristics Tester
Product Overview
The BD-D665-11143 Lubricating Oil Rust Characteristics Tester is designed and manufactured in accordance with National Standard GB/T11143 "Test Methods for Rust-Preventing Characteristics of Inhibited Mineral Oil in the Presence of Water", ASTM D665, and IP135 standards.
Purpose & Applications
This instrument is specifically designed to determine the rust-preventing characteristics of inhibited mineral oil, particularly the rust-preventing characteristics of turbine oil to iron parts in the presence of water. It is also suitable for testing other oils such as hydraulic pressure oil, circulation oil, as well as liquids heavier than water.
Key Features
- Digital temperature control system with uniform bath temperature distribution
- Programmable timer for test duration control with automatic timing
- Four simultaneous sample testing positions for high testing efficiency
- Temperature control, timing, and alarm functions
Technical Parameters
- Power Supply: AC (220±10%) V, 50Hz
- Temperature Range: 0°C ~ 100°C
- Temperature Control Accuracy: ±1°C
- Temperature Sensor: RTD, Pt100
- Temperature Display: Digital display
- Timing Range: 1min ~ 24hour, adjustable
- Time Display: Digital display
- Temperature Control Heating Power: 600W
- Auxiliary Heating Power: 1000W
- Stirring Motor Speed: 1400RPM
- Sample Stir Rate: (1000±50) r/min
- Sample Testing Positions: Four positions
- Ambient Temperature: Room temperature ~ 35°C
- Relative Humidity: ≤85%
- Maximum Power Consumption: 1800W
- Dimensions: 580mm × 320mm × 600mm
Standard Accessories
| No. | Item | Unit | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Beaker holder | Piece | 4 | |
| 2 | Sample stirring rod | Piece | 4 | |
| 3 | Sample rod handle | Piece | 4 | |
| 4 | Sample rod | Piece | 4 | |
| 5 | Beaker cover | Piece | 4 | |
| 6 | Beaker | Piece | 6 | |
| 7 | Thermometer 0 ~ 100 °C, scale division 0.5 °C | Piece | 1 | |
| 8 | 15 A fuse (Φ5×20) | Piece | 2 | |
| 9 | Temperature sensor | Piece | 1 | |
| 10 | Power supply wire (250 V 10 A) | Piece | 1 | |
| 11 | Stopping ring for thermometer (1#) | Piece | 4 | |
| 12 | Bath cover | Piece | 4 |
