BD-D130-5096A Copper Strip Corrosion Tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-D130-5096A
Power Supply:
AC 220 V±10%, 50 Hz
Temperature Sensor:
RTD, Pt100
Temperature Range:
Ambient To 100 °C,can Be Set At Will
Temperature Control Accuracy:
±1 °C
Temperature Display Mode:
LCD
Heating Power:
1600 W
Highlight:
Copper Corrosion Tester
,Copper Strip Corrosion Tester
,BD-D130-5096A Corrosion Tester
Product Description

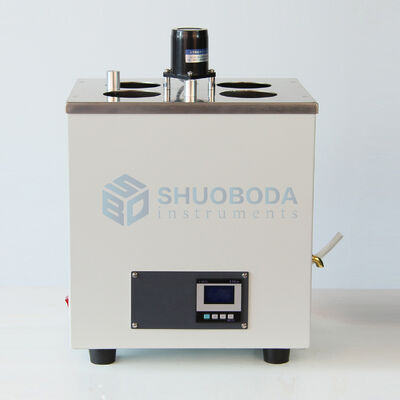

BD-D130-5096A Copper Strip Corrosion Tester
Product Overview
The BD-D130-5096A Copper Strip Corrosion Tester is designed and manufactured in accordance with the national standard of People's Republic of China GB/T 5096 and ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test. This instrument is suitable for determining the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument features temperature control, automatic timing, and alarm functions.
Main Technical Features
- Utilizes LCD temperature controller, heater, and electric stirrer to form a constant temperature bath with uniform temperature distribution
- Temperature controller includes timing function to control test duration with automatic timing and alarm notification upon completion
- Features four sample holes capable of holding one bomb or three tubes per hole for high testing efficiency
- Equipped with a standard color board imported from USA to meet test method requirements
Technical Specifications
- Power supply: AC 220 V±10%, 50 Hz
- Temperature sensor: RTD, Pt100
- Temperature range: Ambient to 100 °C, adjustable
- Temperature control accuracy: ±1 °C
- Temperature display mode: LCD
- Heating power: 1600 W
- Time controlling range: 1 minute to 24 hours, adjustable
- Sample testing positions: Four positions
- Sample quantity at one test: 4 to 12 pieces
- Ambient temperature: Room temperature to 35 °C
- Relative humidity: ≤ 85%
- Maximum power consumption: 1800 W
- Dimensions: 440mm × 330mm × 560mm
Standard Accessories
| No. | Item | Unit | Qty | Remarks |
|---|---|---|---|---|
| 1 | Test bomb bracket | Piece | 2 | |
| 2 | Test tube bracket | Piece | 2 | |
| 3 | Copper strip | Piece | 8 | |
| 4 | Test tube | Piece | 8 | |
| 5 | Test bomb | Piece | 2 | |
| 6 | Observation tube | Piece | 5 | |
| 7 | Grinding device | Piece | 1 | |
| 8 | Thermometer 0°C ~ 100 °C, scale division is 0.5 °C | Piece | 1 | |
| 9 | 3 # Silica gel plug | Piece | 1 | |
| 10 | Temperature sensor | Piece | 1 | |
| 11 | 10 A fuse (Φ5×20) | Piece | 2 | |
| 12 | "O" type ring (Φ40mm×3.5mm, Φ42mm×3.5mm) | Piece | 2 for each | |
| 13 | Standard color board | Piece | 1 | |
| 14 | Stopping ring for thermometer (1 #) | Piece | 4 | |
| 15 | Stopper for test tube | Piece | 14 |
Product Image
