DND-5PRO Gelatin Brinell viscometer with dual temperature sensors
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DND-5PRO
Viscosity Measuring Range:
0-999.99 MPa.s
Viscosity Value Display Accuracy:
0.01mPa.s
Instrument Measurement Deviation:
≤+0.015mPa.s
Time Measurement Range:
0-5000s
Time Display Accuracy:
0.01s
Sample Temperature Display Accuracy:
0.01°C
Highlight:
Gelatin Brinell viscometer with temperature sensors
,Bloom viscosity tester with dual sensors
,DND-5PRO gelatin viscosity meter
Product Description

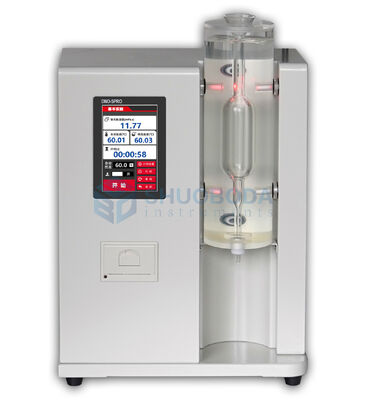

DND-5PRO Gelatin Brinell Viscometer with Dual Temperature Sensors
The DND-5PRO Gelatin Brinell viscometer is a professional instrument designed for high-precision measurement of Brinell viscosity, with conversion capabilities to Engler viscosity. Featuring an industrial-grade high-definition color touch screen and a powerful 32-bit 400MHz processor, this instrument offers advanced functionality for laboratory and industrial applications.
Key Features
- Dual temperature sensors for independent monitoring of water bath and sample temperatures
- Interactive temperature accuracy measurement and calibration
- Viscosity tube volume measurement and calibration capabilities
- Arbitrary temperature settings and constant environment control
- Viscosity measurements for samples with different specific gravity parameters
- Data comparison between Brinell viscosity, kinematic viscosity, and Engler viscosity
- 5-inch high-definition touch screen with intuitive interface
- Three-level system permission management with user authentication
- Measurement data audit tracking compliant with GMP certification
- Dual language support (Chinese and English operating systems)
- Built-in micro printer for current and historical measurement records
Applications
Suitable for viscosity performance testing of various gelatins including edible gelatin, medicinal gelatin, bone glue, industrial gelatin, and gelatin-like liquids with specific gravity parameters.
Compliance Standards
- Chinese Pharmacopoeia 2020 Edition
- National Standard "Food Additive Gelatin" GB6783
- National Standard "Medicinal Gelatin Hard Capsules" GB13731
- Light Industry Standard "Edible Gelatin" QB/T4087-2010
- Industry Standard "Medicinal Gelatin" QB2354
- Industry Standard "Industrial Gelatin" QB/T1995
- Industry Standard "Bone Glue" QB/1996
- Industry Standard "Photographic Gelatin" QB1997
Technical Specifications
| Parameter | Specification |
|---|---|
| Viscosity Measuring Range | 0-999.99 mPa.s |
| Viscosity Display Accuracy | 0.01 mPa.s |
| Measurement Deviation | ≤+0.015 mPa.s |
| Time Measurement Range | 0-5000 s |
| Time Display Accuracy | 0.01 s |
| Sample Temperature Accuracy | 0.01°C |
| Water Bath Temperature Accuracy | 0.01°C |
| Temperature Control Range | 5°C - 70°C |
| Viscometer Volume | 100 ml |
| Volume Error | +0.2 ml |
| Dimensions | 365 × 215 × 535 mm |
| Weight | Approximately 12 kg |
