DND-2 Gelatin Brinell viscometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DND-2
Viscosity Measurement Range:
0-999.99 MPa.s
Viscosity Value Display Resolution:
0.01 MPa.s
Instrument Measurement Accuracy:
±0.02 MPa.s
Time Measurement Range:
0-5000 Seconds
Time Measurement Accuracy:
≤0.01 Seconds
Time Display Resolution:
Milliseconds
Highlight:
gelatin brinell viscometer drug testing
,DND-2 viscometer gelatin viscosity
,brinell viscometer pharmaceutical testing equipment
Product Description

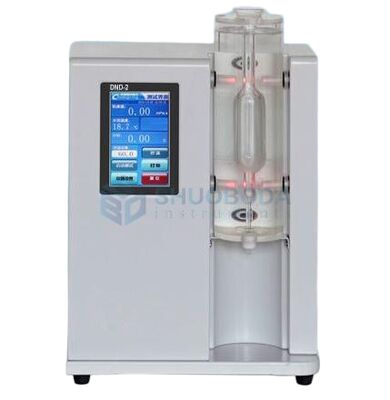

DND-2 Gelatin Brinell Viscometer
The DND-2 Gelatin Brinell Viscometer features an industrial-grade high-resolution color touch screen and advanced 32-bit 400MHz CPU architecture, significantly enhancing instrument reliability, accuracy, and reproducibility. It includes an RS232 serial print interface and introduces preset and constant temperature functions for specific sample testing requirements.
Application Scope
Suitable for viscosity performance testing of all gelatin types including edible gelatin, medicinal gelatin, and industrial gelatin.
System Structure and Features
- High-performance embedded intelligent touch screen for convenient operation and precise control
- User-friendly interface with intuitive screen prompts for intelligent operation
- Comprehensive instrument settings providing multiple user options
- Real-time date and time function with easy correction capability
- Interactive intelligent temperature correction function
- Interactive viscosity tube parameter correction
- Measurement range from room temperature to 70°C, ideal for gelatin production quality control
- Advanced automatic fault detection, repair, and alarm systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Viscosity Measurement Range | 0-999.99 mPa.s |
| Viscosity Display Resolution | 0.01 mPa.s |
| Measurement Accuracy | ±0.02 mPa.s |
| Time Measurement Range | 0-5000 seconds |
| Time Measurement Accuracy | ≤0.01 seconds |
| Time Display Resolution | Milliseconds |
| System Date/Time Accuracy | 24 hours error ≤ 3 seconds |
| Water Bath Temperature Range | Room temperature - 70°C |
| Temperature Setting Resolution | 0.1°C |
| Temperature Control Accuracy | ±0.1°C |
| Temperature Display Resolution | 0.01°C |
| Viscometer Volume | 100 ml |
| Volume Error | ±0.5 ml |
| Measuring Device Center Moment | 152 mm ± 0.5 mm |
| Power Supply | AC 220V±10% 50Hz ≤500W |
| Environmental Conditions | Room temperature 10-30°C, humidity <75% |
| Dimensions | 365 * 215 * 535mm (L * W * H) |
| Weight | Approximately 12 kg |
