DND-5 Gelatin Brinell viscometer
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
DND-5
Viscosity Measuring Range:
0-999.99 MPa.s
Viscosity Value Display Accuracy:
0.01mPa.s
Instrument Measurement Deviation:
≤+0.015mPa.s
Time Measurement Range:
0-5000s
Time Display Accuracy:
0.01s
Sample Temperature Display Accuracy:
0.01°C
Highlight:
gelatin brinell viscometer drug testing
,DND-5 viscometer gelatin viscosity
,brinell viscometer pharmaceutical equipment
Product Description

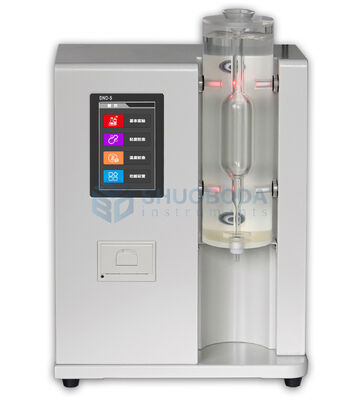

DND-5 Gelatin Brinell Viscometer
Product Introduction
The DND-5 Brinell viscometer is a professional instrument designed for high-precision measurement of Brinell viscosity, with convertible Engler viscosity capabilities. Featuring an industrial-grade high-definition color touch screen and a powerful 32-bit 400MHz central processor, this instrument provides comprehensive monitoring with real-time display of both water bath temperature and sample temperature. It offers interactive temperature accuracy measurement and calibration, viscosity tube volume measurement and calibration, arbitrary temperature settings for constant environment maintenance, and supports viscosity measurements for samples with varying specific gravities at different temperatures.
Applications
Suitable for viscosity performance testing of all gelatin types including edible gelatin, medicinal gelatin, bone glue, industrial gelatin, and gelatin-like liquids that can provide specific gravity parameters.
Applicable Standards
- "Chinese Pharmacopoeia" 2020 Edition
- National Standard "Food Additive Gelatin" GB6783
- National Standard "Medicinal Gelatin Hard Capsules" GB13731
- Light Industry Standard "Edible Gelatin" QB/T4087-2010
- Industry Standard "Medicinal Gelatin" QB2354
- Industry Standard "Industrial Gelatin" QB/T1995
- Industry Standard "Bone Glue" QB/1996
- Industry Standard "Photographic Gelatin" QB1997
Product Advantages
- 5-inch high-definition touch screen with interactive interface and intelligent control
- Three-level system permission management with multiple user support (username + password login)
- Measurement data audit tracking function (compliant with current Chinese GMP certification specifications)
- Viscosity measurement for samples with different specific gravities at various temperatures
- Specific gravity writing function for gelatin-like liquids
- Interactive viscosity tube volume parameter self-measurement and automatic calibration
- Interactive temperature accuracy parameter self-measurement and automatic calibration
- Data comparison and switching between Brinell viscosity and kinematic viscosity, Brinell viscosity and Engler viscosity
- Dual language operating systems (Chinese and English)
- Built-in micro printer for current measurement process and results printing
- Historical measurement records and results tracing by date or operator query
- Dual temperature sensors for separate water bath and sample temperature monitoring
Technical Specifications
| Model | DND-5 |
|---|---|
| Viscosity Measuring Range | 0-999.99 mPa.s |
| Viscosity Value Display Accuracy | 0.01 mPa.s |
| Instrument Measurement Deviation | ≤+0.015 mPa.s |
| Time Measurement Range | 0-5000 s |
| Time Display Accuracy | 0.01 s |
| Sample Temperature Display Accuracy | 0.01°C |
| Water Bath Temperature Display Accuracy | 0.01°C |
| Water Bath Temperature Control Range | 5°C~70°C |
| Viscometer Volume | 100 ml |
| Viscometer Volume Error | +0.2 ml |
| Dimensions | 365×215×535 mm (L×W×H) |
| Total Weight | Approximately 12 kg |
