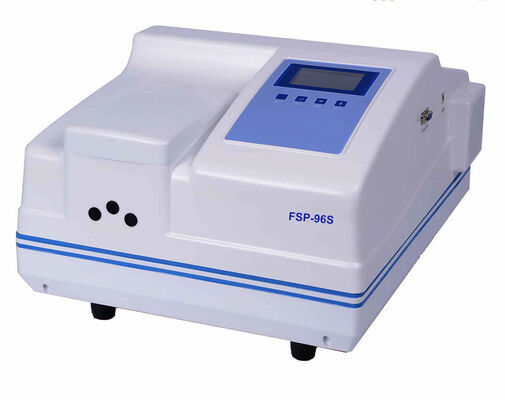

FSP-96S Fluorescence Spectrophotometer For Quantitative Fluorescence Measurement

FSP-96S/96PRO Fluorescence spectrophotometer

The FSP-96S fluorescence spectrophotometer is suitable for quantitative fluorescence measurement in the ultraviolet and visible light regions. It can be extended to red-sensitive band detection by using a special photomultiplier tube detector.

It supports stand-alone and online modes. In stand-alone mode, the on-board microcomputer system is used to provide fluorescence intensity measurement, standard curve equation creation and saving, concentration measurement, data printing, automatic zero adjustment, automatic background deduction and other functions.

Applicable to materials research, pharmaceutical analysis, biochemical and clinical testing, quality control analysis, food safety testing and other areas of the samples were analyzed qualitatively and quantitatively.

Features

1. Two operation way fluorescence intensity and emission intensity can be chosen, can scanning fluorescence spectra, fluorescence kinetic measurements and quantitative analysis in fluorescence intensity model

2. High reliability of cold light source (FSP-96S), 150W xenon lamp (FSP-96pro)

3. 10 position of emission spectrum sweep speed can be selected, including high-speed low-noise scanning and fine scanning, to reach fastest at 30000nm/min, can be completed full spectrum scanning in 1 second, with intelligent pre-scan feature which can quickly display the spectral information of the unknown sample, automatically excludes other scattering peak and peak multiplier effects, determine the best measure parameters, locate the fluorescence emission peaks.

4. Built with microcomputer system to measuring fluorescence intensity, concentration direct reading, auto-zero, automatic background subtraction and other functions; Via USB2.0 interface & software to control & data acquisition to computer.

5. The normalized feature for fluorescence value could make different fluorescence's result comparable.

6. Feature-rich software for qualitative / quantitative, the emission spectrum wavelength scanning menus available for map zoom, multiple maps compare, map operation, peak detection, peak area calculation and 1-4 derivative spectra function; quantitative tests menu can use standard curve method with undetermined coefficients assay sample concentration.

7. A variety of measurement accessories, including hole cuvette holder, multipurpose fluorescent sample holder, 200μl Eppendorf tube fluorescence measurement, micro-capillary sample holder, sample fluorescence semiautomatic injection, hole cuvette adapter, a film sample holder powdered sample holder and sheathed cuvette racks, small sample volumes as low as 5μl can be easily measured with high concentrations of fluorescence detection, fluorescence detection applies equally solid, able to meet a variety of requirements.

8. Compact design to save space.

Specifications:

Standard Configuration
