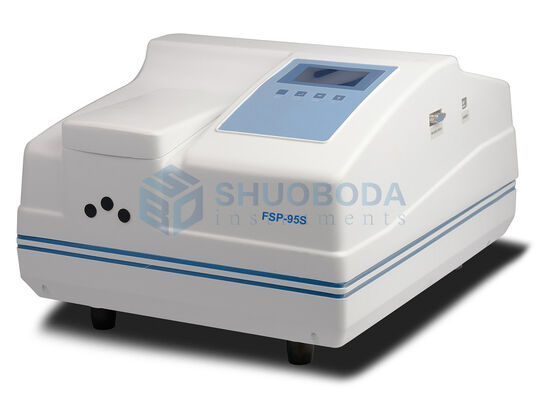

FSP-95S small Fluorescence Spectrophotometer 200nm - 650nm
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5`8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Fluorescence Spectrophotometer 200nm
,Fluorescence Spectrophotometer 650nm
FSP-95S Fluorescence Spectrophotometer
1. fluorescence intensity measurements and calculated sample concentrations, single sample fluorescence can be carried out quantitative and qualitative analysis.
2. 128 * 64 LCD display, more user-friendly interface.
3. cold light source with high reliability, relative to the heat source usually has a low background, low power, low temperature, long life, high strength advantage, avoid thermal pollution, more energy-saving advantages. 365nm excitation wavelength, quinine sulfate detection limit to 5 *10-10
4. can be an external serial printer performs data printout, convenient data storage.
5. supports stand-alone, on-line two modes, use the standalone state machine computer systems to provide fluorescence intensity measurements, establish the standard curve equation and preservation, concentration measurement, data printing, auto-zero, automatic background subtraction and other functions. Online and with selected general data processing software package for on-line operation, more convenient for you to further calculations and data processing, saving you hours of operation.
6. variety of measurement accessories, including single-hole sample cell holder, multi-fluorescent sample holder, 200μL microcentrifuge tube measurement accessories, capillary micro sample measurement accessories, semi-automatic sample injection fluorescence attachment hole sample cell adapter, film and powder samples shaped sample measurement accessories and sheathed sample cell holder and so on. Wealth of accessories greatly expands the application range of the instrument.
7. small size of the model can save a lot of desk space
Specifications:
|
Model |
FSP-95S |
|
Detection sensitivity |
Water Raman peak signal-to-noise ratio: S/N 290 (P-P) |
|
Excitation wavelength bandwidth |
10/20nm |
|
Emission wavelength bandwidth |
10nm |
|
Emission wavelength accuracy |
±1.0nm |
|
Emission wavelength repeatability |
≤0.5nm |
|
light source |
High intensity LED cold light source |
|
Optical system |
C-T monochromator grating automatic wavelength scanning |
|
fluorescence receiver |
original photomultiplier tube |
|
Optional range of excitation wavelength (LED light source) |
250~600nm |
|
Emission wavelength range |
200-650nm, expandable to 200-900nm |
|
Wavelength scan speed |
48000~15nm/min |
|
Measure linearity |
Correlation coefficient≥0.995 |
|
Data output method |
Microsoft (R) Excel format, bmp picture format |
|
Data transmission method |
USB2.0 interface |
|
Peak intensity repeatability |
≤1.5% |
Standard configuration:
|
Standard configuration items |
Quantity |
|
FSP-95S fluorescence spectrophotometer host |
1 set |
|
Excite LED light source (FSP-95S) |
365nm |
|
Instruction Manual |
1 |
|
Product Certificate of Conformity |
1 |
|
10mm quartz cuvette |
2 pcs |
|
Power cable |
1 pc |
|
Fuse(2A) |
2 pcs |
|
Packing List |
1 |
Optional items:
|
Measurement accessories |
Function |
|
Software |
Connect to a computer for use, with more functions and easier operation |
|
Single-hole sample cell holder (standard configuration) |
Routine liquid fluorescence measurements |
|
Multipurpose fluorescence sample holder |
Various measurement accessory bases |
|
frequency doubling filter |
Eliminate frequency doubling interference peaks in fluorescence measurements |
|
200uL microcentrifuge tube measurement accessories |
Centrifuge tube fluorescence measurement function |
|
Single well sample cell adapter |
Combined with the multi-purpose fluorescence sample holder, it can form conventional liquid fluorescence measurement and fluorescence reflection measurement functions. |
|
Membrane fluorescence sample measurement holder |
Combined with the multi-purpose fluorescence sample holder, it can form conventional film sample fluorescence measurement and fluorescence reflection and transmission measurement functions. |
|
Powdered fluorescence sample measurement stand |
Combined with the multi-purpose fluorescent sample holder to form a conventional powder sample fluorescence measurement function |
|
Sheathed sample cell holder |
Combined with a multi-purpose fluorescent sample holder to form a sheathed fluorescent sample cell with fluorescence measurement function |
|
Micro quartz four-way cuvette |
Provides micro-sample fluorescence measurement function |
