DSC Differential Indicator Differential Scanning Calorimetry Machine With Heating & Cooling Curve
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | ,L/C,T/T |
| Supply Capacity: | 500 sets/month |
DSC Differential Indicator
,DSC Differential Scanning Calorimetry Machine
,Differential Scanning Calorimetry Machine

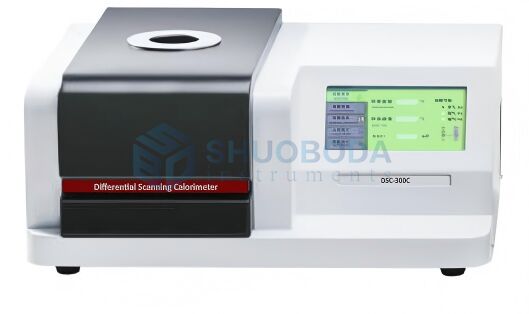

DSC-300C Differential Scanning Calorimeter, with heating & cooling curve
Product Description
DSC is a differential indicator with the highest precision introduced by the company. The sensor adopts imported E couple with high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference and high baseline stability. The differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and enthalpy test, product stability, oxidation induction period test. Wide range of applications
Technical features
- Industrial-grade 7-inch touch screen, rich in display information.
- Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
- The USB communication interface has strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.
- Automatically switch the two-channel atmosphere flow, with fast
- switching speed and short stabilization time. At the same time, a protective gas input is added.
- The software is simple and easy to operate.
Technical Parameters
|
Model |
DSC-300C |
|
|
Temperature range |
-40°C~ 600°C |
|
|
Temperature resolution |
0.001°C |
|
|
Temperature fluctuation |
±0.01°C |
|
|
Temperature repeatability |
±0.1°C |
|
|
Heating rate |
0.1～100°C/min |
|
|
Cooling rate |
0.1~20℃/min |
|
|
Constant temperature time |
program setting ≤24h |
|
|
Temperature control method |
Heating & cooling scan, heating, cooling, constant temperature multi-stag (automatic program control) |
|
|
DSC range |
0～±800mW |
|
|
DSC resolution |
0.01uW |
|
|
DSC accuracy |
0.001mW |
|
|
Power supply |
AC220V/50Hz or customized |
|
|
Atmosphere control gas |
nitrogen, oxygen (the instrument automatically switches) |
|
|
Gas flow |
0-300mL/min |
|
|
Gas pressure |
0.3MPa |
|
|
Display mode |
24bit color, 7-inch LCD touch screen display |
|
|
Data interface |
standard USB interface |
|
|
Parameter standard |
equipped with standard materials (indium, tin, lead), users can calibrate the temperature by themselves |
|
|
Thermocouple |
The instrument has multiple sets of thermocouples, one set of test sample temperature, and one set of test instrument internal ambient temperature. |
|
|
Software |
with automatic analysis function |
|
Parts of the sample test pattern
Configuration list
|
SN |
Name of accessories |
Quantity |
Remarks |
|
1 |
DSC-300C differential instrument |
1 set |
|
|
2 |
Software USB flash disk |
1 pc |
|
|
3 |
Communication data cable |
2 pcs |
USB data communication |
|
4 |
power cord |
1 pc |
|
|
5 |
Aluminum crucible |
200 pcs |
|
|
6 |
Ceramic crucible |
100 pcs |
For testing highly corrosive samples |
|
7 |
Furnace body cover |
3 pcs |
Multilayer insulation |
|
8 |
Raw tape |
1 roll |
|
|
9 |
Reference materials |
1 for each |
Indium, tin |
|
10 |
10A fuse |
5 pcs |
|
|
11 |
Sample spoon/sample pressure bar/tweezers |
1 for each |
|
|
12 |
Dust cleaning ball |
1 pc |
|
|
13 |
Gas pipe (including connector) |
2 pcs |
Φ8mm |
|
14 |
Manual, warranty card and certificate |
1 for each |
|
|
15 |
Cryogenic device |
1 set |
|
Note: The user needs to provide a computer, which can be configured normally.
