DSC-100A RT 600°C Precision DSC Differential Scanning Calorimeter Instrument
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
DSC Differential Scanning Calorimeter
,Precision Differential Scanning Calorimeter
,Precision DSC Calorimeter

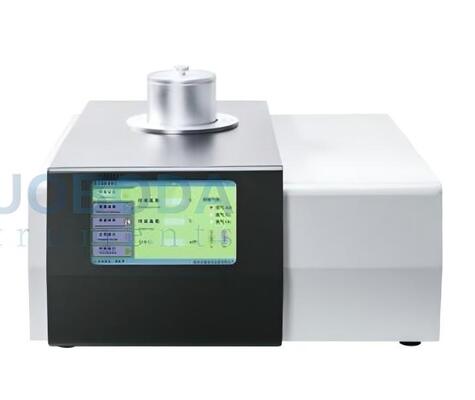

DSC-100A Differential Scanning Calorimeter (DSC)
Product introduction
DSC-100A is a differential indicator with the highest precision. The sensor adopts imported material E couple with high sensitivity. The signal acquisition circuit is shielded and protected, with strong anti-interference and high baseline stability.
The differential scanning calorimeter is a touch screen type, which can perform glass transition temperature test, phase transition test, melting and enthalpy test, product stability, curing, and oxidation induction period test.
Features
Industrial-grade 7-inch touch screen, rich in display information.
Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
The USB communication interface has strong versatility, reliable and uninterrupted communication, and supports self-recovery connection function.
Automatically switch the two-channel atmosphere flow, with fast switching speed and short.
The host computer is a three-in-one operating software, which is also suitable for the use of thermogravimetric and synchronous instruments.
The instrument has multiple sets of thermocouples, a set of test sample temperature, and a set of test instrument internal ambient temperature.
Technical Parameters
|
Model |
DSC-100A |
|
|
Temperature range |
Room temperature~600°C air cooling |
|
|
Temperature resolution |
0.01°C |
|
|
Temperature fluctuation |
±0.1°C |
|
|
Temperature repeatability |
±0.1°C |
|
|
Heating rate |
0.1～100°C/min |
|
|
Data scan |
Heating scan |
|
|
Temperature control method |
Heating, constant temperature, cooling (auto program control) |
|
|
DSC range |
0～±600mW |
|
|
DSC Accuracy |
0.001mW |
|
|
Power supply |
AC220V/50Hz or customized |
|
|
Atmosphere control gas |
Nitrogen, oxygen (automatic switching of the instrument) |
|
|
Gas flow |
0-300mL/min |
|
|
Gas pressure |
≤5MPa |
|
|
Display mode |
24bit color, 7-inch LCD touch screen display |
|
|
Data interface |
Standard USB interface |
|
|
Parameter standard |
Equipped with standard materials (indium, tin), users can calibrate the temperature by themselves |
|
