Mechanical Cooling Differential Scanning Calorimeter -70°C - 600°C DSC420D
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood box |
| Delivery Period: | 5·8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Mechanical Cooling Differential Scanning Calorimeter
,Differential Scanning Calorimeter 600°C

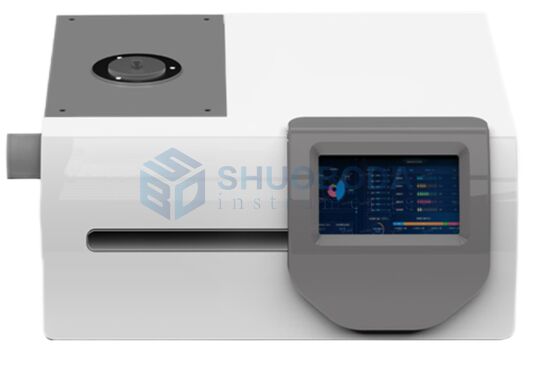

DSC420 Series Differential Scanning Calorimeter
Introduction
DSC420 series is the new differential scanning calorimeter launched by SHUOBODA. The instrument has been completely redesigned and upgraded from appearance to software, making it more portable. At the same time, the sensor adopts anti-interference and corrosion-resistant treatment to extend the service life. At the same time, the instrument has high sensitivity and improved measurement accuracy. At the same time, the software is more intelligent and easy to operate.
The DSC420 Series differential scanning calorimeter can measure the melting point, glass transition temperature, oxidation induction period, melting, thermal enthalpy, curing temperature and thermal stability of materials.
The DSC420 Series differential scanning calorimeter has a wide temperature range and can meet the measurement needs of different materials.
Test standards:
Ø GB/T 19466.1-2004 Plastics Differential Scanning Calorimetry (DSC) General Rules
Ø GB/T 19466.2-2004 Plastics Differential Scanning Calorimetry (DSC) Part 2: Determination of Glass Transition Temperature
Ø GB/T 19466.3-2004 Plastics Differential Scanning Calorimetry (DSC) Part 3: Determination of Melting and Crystallization Temperatures and Enthalpy
Ø GB/T 19466.4-2016 Plastics Differential Scanning Calorimetry (DSC) Part 4_Determination of Specific Heat
Main Features
Rapid cooling: Air cooling, semiconductor, mechanical, liquid nitrogen and other cooling methods are available, doubling the experimental efficiency
New appearance design, more convenient and compact
Software upgrade, more intelligent
Sensor upgrade, more anti-oxidation and corrosion-resistant
High sensitivity and high measurement accuracy
Wide temperature range and wider application range
Customization to meet more testing needs
Technical Parameter
|
Model |
DSC420 |
DSC420C |
DSC420D |
DSC420L |
|
Temperature range |
RT ~ 600°C |
-50°C~600°C |
-70°C~600°C |
-170°C~600°C |
|
DSC range |
±800mW |
±1000mW |
±1500mW |
±2000mW |
|
Temperature sensitivity |
0.001 |
0.001 |
0.001 |
0.001 |
|
Heating rate |
0.1~100°C/min |
0.1~100°C/min |
0.1~100°C/min |
0.1~100°C/min |
|
Cooling rate |
-0.1~20°C/min |
-0.1~40°C/min |
-0.1~60°C/min |
-0.1~80°C/min |
|
Temperature control method |
Intelligent PID temperature control, intelligent memory temperature control mode, temperature accuracy combines the advantages of dynamic and static algorithms, with self-tuning and self-optimization functions |
|||
|
Cooling method |
Air cooling |
Semiconductor cooling |
Mechanical cooling |
Liquid nitrogen cooling |
|
Resolution |
0.01uW |
0.01uW |
0.01uW |
0.01uW |
|
Gas flow rate |
0~200mL/min |
0~200mL/min |
0~200mL/min |
0~200mL/min |
|
Timing frequency |
1-20Hz adjustable |
1-20Hz adjustable |
1-20Hz adjustable |
1-20Hz adjustable |
|
DSC noise |
0.1μW |
0.1uW |
0.1μW |
0.1μW |
|
Temperature resolution |
0.0001°C |
0.0001°C |
0.0001°C |
0.0001°C |
Performance advantages
1. Brand-new furnace structure, better baseline and higher precision. Indirect conduction heating is adopted, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
2. A wide temperature range can meet the test temperature requirements of different materials.
3. Fast cooling. The instrument adopts a variety of cooling methods, including: air cooling, semiconductor, mechanical refrigeration and liquid nitrogen refrigeration, which can achieve rapid cooling and improve the efficiency of the experiment.
4. Automatically switch the two-way atmosphere flow, with fast switching speed and short stabilization time. At the same time, add one protective gas input.
5. The supporting analysis software is upgraded, the analysis data is more comprehensive, and the operation is more intelligent and convenient.
6. The instrument has high sensitivity, which greatly improves the accuracy of experimental tests.
7. Customized services can be provided to meet different test needs.
