Portable X Gamma Nuclear Radiation Detector DA-800D With LCD Display
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per month |
Gamma Nuclear Radiation Detector
,Portable Nuclear Radiation Detector

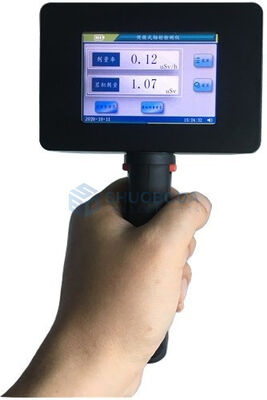

DA-800D Portable X, Gamma Radiation Detector
Product introduction
DA-800D Portable X-Ray and Gamma Radiation Detector uses a compensated GM counter tube as a detector, which has the characteristics of high sensitivity and can accurately measure gamma-rays and X-rays. It uses a high-speed microprocessor and a 3.5-inch color touch liquid
The LCD display makes the operation easier. Widely used in medical treatment, disease control, environmental protection, metallurgy, petroleum, chemical industry, radioactive laboratory, industrial flaw detection, radiation processing, mining and other occasions that require radiation environment and radiation protection detection.
Features
• The high-speed embedded microprocessor is selected to ensure the real-time performance of monitoring data and status;
• The handle of the main unit is detachable to meet the needs of changing handles in different measurement environments;
• It adopts a 3.5-inch color touch LCD display and a full Chinese operation interface, which is easy to use and easy to operate.
• Automatically save the accumulated dose, will not be lost when power off, and can manually check the alarm record;
• Alarm thresholds for dose rate and cumulative dose can be set;
• 4000 sets of alarm storage data;
• Over-threshold sound alarm, small dead time, high dose rate;
• It has a real-time clock function, which can display the year, month and day in real time, and the operation of the clock will not be affected by power failure.
Technical parameters
|
Item |
Specification |
|
Detector |
Metal GM counter tube |
|
Energy response |
50Kev～5Mev, response variation is less than ±20% |
|
Detectable type |
x, gamma and hard beta rays |
|
Measuring range |
Dose rate: 0.05μSv/h～3mSv/h; (optional 0.1μSv/h～50mSv/h) Cumulative dose: 0-9999mSv. |
|
Display |
3.5-inch color touch LCD display |
|
Sensitivity |
1μSv/h>5CPS. |
|
Relative inherent error |
≤±10% (137Cs, 200μSv/h); typical value. |
|
Response time |
1S (after algorithm processing). |
|
Operating environment |
temperature -10℃～+50℃, relative humidity (at 40℃)≤95%. |
|
Power supply |
7.4V rechargeable lithium battery, real-time detection of battery voltage, and the battery icon flashes to remind when the voltage is low |
|
Shell |
aluminum alloy structure, the overall structure is strong and durable; |
|
Weight |
Approx. 300g (without battery), |
|
Dimensions |
80×120×40mm (without handle). |
