DA-15A Multifunctional Radiation Meter For Nuclear Medicine
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per month |
Multifunctional Radiation Meter
,Nuclear Medicine Radiation Meter

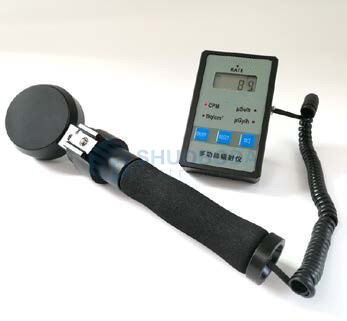

DA-15A Multifunctional radiation meter
Product introduction
The DA-15A multifunctional radiation meter is designed for nuclear medicine, molecular biology laboratories, nuclear material transportation and other aspects where there are α, β surface contamination and X, γ radiation according to the requirements of ionizing radiation protection. It is a high-sensitivity Intelligent portable instrument. It combines the functions of a surface contamination monitor and an X, γ dose rate meter. It can be used to measure both the surface contamination caused by αβ and the Xγ radiation dose rate. For α and βγ measurement, the display can be switched, and the measurement is operated by the handle button, and the measurement unit is cpscpmBq/cm2 can be converted.
Main application
• Radiation rooms, radiographs, etc. in hospitals;
• Nuclear power plants, radioactive laboratories and other units, isotope production plants;
• Health protection and epidemic prevention stations at all levels; environmental monitoring departments at all levels.
• Check the radioactivity of building materials such as stone;
• Potential radiation detection of home decoration;
• Check for radioactivity in china tableware, glasses, jewelry, etc.;
• Check for radioactivity in building materials such as stone.
Technical parameters
|
Item |
Specification |
|
Measuring range |
α: 0~8000cps; β: 0~8000cps; α: 0~600 Bq/cm2, β: 0~4000Bq/cm2 X, γ: 0~1000μGy/h |
|
Temperature Operation |
-10°C～+50°C; Storage -20°C～+60°C; |
|
Energy response |
25KeV ~ 3MeV, the change limit is 15%; |
|
Intrinsic error |
no more than 10%; angular response: (137Cs) no more than 15%. |
|
Humidity range |
40% ~ 95%RH (no precipitation of moisture); |
|
Measuring unit |
Bq/cm2, CPM/CPS, uSv/h, μGy/h |
|
Detection efficiency |
(for 90Sr+90Y(β)) 54%, |
|
Surface sensitivity |
(to 90Sr+90Y(β)) 500 CPM/Bq.cm-2; |
|
Detector |
End window GM tube, effective diameter 44.5mm, mica window density 1.5-2.0mg/cm2; |
|
Sensitivity |
(137Cs) 342cpm/uSv.h-1; |
|
Background reading |
60cpm |
|
Power supply |
7.4V rechargeable lithium battery, real-time detection of battery voltage, and the battery icon flashes to remind when the voltage is low; |
|
Correction |
Serial port data correction K value factor function |
|
Shell |
The shell of the host and the external detector is made of aluminum alloy, and the overall structure is strong and durable |
|
Dimensions |
Counter: Width 7.4cm Length 11.8cm Height 2.5cm (without bracket) Detector: Width 7.5cm Length 28.0cm (with handle) Height 2.8cm |
|
Weight |
850g |
