Multifunctional Radiation Survey Detector Alpha Beta Gamma Survey Meter
| MOQ: | 1000 Series |
| Price: | Negotiable |
| Standard Packaging: | Carton |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets per month |
Multifunctional Radiation Survey Detector
,Radiation Alpha Beta Gamma Survey Meter
,Multifunctional Alpha Beta Gamma Survey Meter

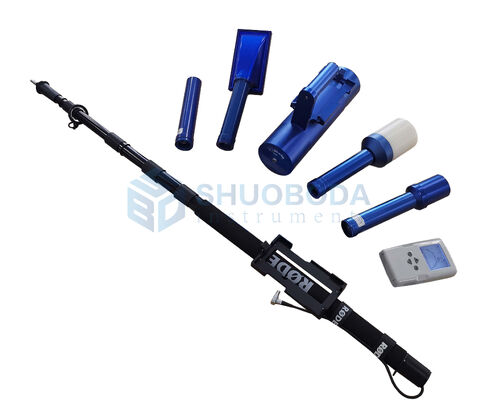

1000G Multifunctional Radiation Survey Detector
Product Description
1000G Multifunctional Radiation Survey Detector is a multifunctional radiation meter with a host of intelligent detectors that can be hot-swapped to measure alpha, beta, gamma and n radiation levels in an integrated manner, making it a versatile system that covers almost all environmental monitoring and radiation protection measurements
1000GH Multifunctional Radiation Meter Mainframe
l 2.8"LCD screen with built-in energy compensated GM tube
l Energy range: 50keV ~3MeV
l Dosage rate range: 100nSv/h ~ 100mSv/h (scalable to 10Sv/h)
l Sensitivity: 1.0cps/(µSv/h)
l Dimensions: 30Hx 94W x 165D(mm)
l Weight 360g, can be used as a standalone radiation alarm
AB1000 a, β, γ detector
l Thin plastic scintillator (ZnS coated) detectors
l Detection window area: 100 cm2
l Detection efficiency: a > 15% @ 241Am; β> 25% @ 90Sr + 90γ
l Background: a < 0.1s-1, β<20s-1
l Dimensions:130H x 95W x 355D(mm)
l Weight: 460g
NA1000 High Sensitivity Gamma Detector
l 2" x 2" high sensitivity Nal detector
l Energy range: 30keV ~3MeV
l Dose rate range: 10nSv/h to 100µSv/h
l Sensitivity: >1500cps/(µSv/h)
l Size:Ф58x275(mm)
l Weight: 740g
ND1000 Neutron Detector
l Highly sensitive 6Lil (Eu) neutron detector
l Energy range: 0.025eV to 16MeV
l Dose rate range: 0.1µSv/h to 100mSv/h
l Neutron sensitivity: 0.6cps/(µSv/h), @ 252Cf
l Size: Φ85x320(mm)
l Weight: 955g
GD1000 Environmental x, γ radiation detector
l 76mm x 76mm composite scintillator detector
l Energy range: 33keV to 7MeV
l Dose rate range:10nSv/h to 100µSv/h
l Sensitivity:>2000cps/(µSv/h) @ 137Cs
l Dimensions: 216H x97W x 350D(mm)
l Weight: < 2kg
GM1000 Wide Range Gamma Detector
l Dual GM tube detectors
l Energy range: 50keV ~3MeV
l Dose rate range: 0.1µSv/h to 10Sv/h
l Size: Φ43x223(mm)
l Weight: 261g
Extension Pole
l Long pole meter with double GM tube detector and mainframe
l Extension length: 1.2m to 4m
l Weight:<1.5kg
Application areas
1. Environmental radiation monitoring of nuclear power plants, nuclear emergency response.
2. Personal radiation protection monitoring in the workplace, surface radiation contamination measurement, dose rate measurement.
3. Simultaneous measurement of neutrons and gamma rays in a mixed radiation area to search for hidden radioactive sources.
