BD-T18609-ZG5 Automatic acid value tester
| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Plywood packing |
| Delivery Period: | 5~8 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 500 sets/month |
Detail Information
Place of Origin
China
Brand Name
SHUOBODA
Certification
ISO/CE
Model Number
BD-T18609-ZG5
Potential Measurement Range:
0～±2000.0mV;
Basic Error Of Electronic Unit:
0.1% Of Full Reading ±0.5mV;
Acid Value Measurement Range:
0～100μg/g (PPm);
Input Impedance:
Ri≥1×1012Ω;
Buret Volume:
10ml;
Burette Accuracy:
±0.1% (F·S);
Highlight:
Automatic Acid Value Tester
,BD-T18609-ZG5 Acid Value Tester
Product Description

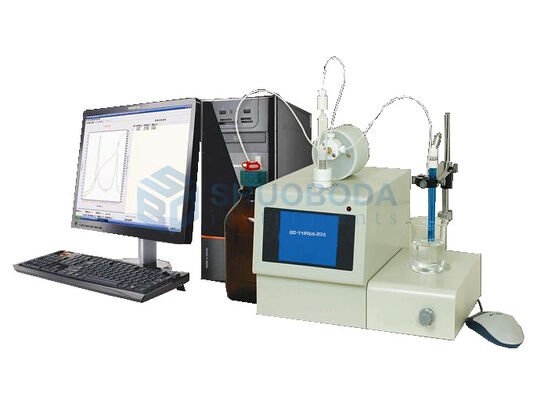

BD-T18609-ZG5 Automatic Acid Value Tester
Product Overview
The BD-T18609-ZG5 Automatic Acid Value Tester is a sophisticated analytical instrument designed for precise measurement of acid values in petroleum products. Comprising hardware circuitry, titration apparatus, and PC integration, this system delivers automated, accurate analysis ideal for petrochemical laboratories, research facilities, and quality control departments.
Applicable Standards
GB/T_7304-2014, GB/T 18609
Performance Characteristics
- Three-component system: hardware circuit, titration device, and PC with specialized application software
- Streamlined design with elegant aesthetics and high automation for precise petroleum product analysis
- Universal Windows OS with intuitive human-machine interface for straightforward operation
- Precision transmission mechanism ensuring stable performance and minimal operational noise
- Integrated automated functions: cleaning, replenishing, and fixed-value dispensing
- Multi-parameter configuration for versatile sample analysis with reduced processing time
- Automatic endpoint detection with manual override capability; comprehensive data export to WORD and EXCEL formats
- High-impedance electrode input for stable, reliable potential measurements
- Specialized electrode configuration: pencil-shaped glass electrode (125-180mm, 8-14mm diameter, 0≤pH≤14 range) with saturated calomel or silver/silver chloride reference electrode
- Motor-driven burette with ±0.001ml accuracy; titration rates below 0.2ml/min, reducing to 0.05ml/min near endpoint
Technical Specifications
| Parameter | Specification |
|---|---|
| Ambient Temperature | 5℃ ~ 35℃ |
| Relative Humidity | ≤80% |
| Power Supply | AC (220±11)V, 50±1Hz |
| Environmental Conditions | No strong corrosive gases; minimal electromagnetic interference beyond earth's magnetic field |
| Potential Measurement Range | (0 ~ ±2000.0) mV |
| Electronic Unit Basic Error | 0.1% of full reading ±0.5mV |
| Acid Value Measurement Range | 0 ~ 100μg/g (PPm) |
| Input Impedance | Ri ≥ 1×10¹²Ω |
| Burette Volume | 10ml |
| Burette Accuracy | ±0.1% (F*S) |
| Burette Dripping Time | (60±20) seconds (F*S) |
Required Reagents & Standards
Potassium hydroxide, isopropanol potassium hydrogen phthalate, phenolphthalein, anhydrous sodium acetate
